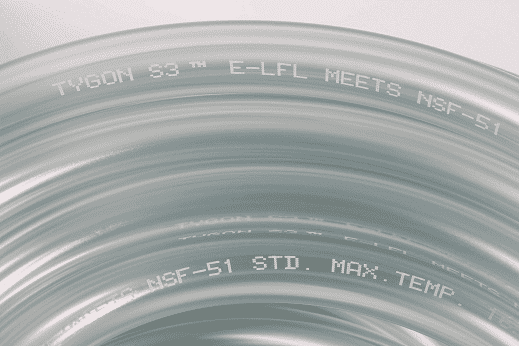

Tygon S3™ AVX42003 Saint Gobain 1/16" I.D. x 3/16" O.D. x 1/16" Wall (E-LFL) 25' Package Length - Pump Tubing

  • $68.42
  • (Unit Price: $2.73 per ft.)

SPECIFICATIONS

Application: Wide Range of Liquid Transfer in Labs, Production Filtration & Fermentation, Food & Beverage and Cosmetic Processing Biopharmaceutical, Surfactant Delivery, Flavor and Vitamin Concentrate Dispensing Printing Ink Transfer, Highly Viscous Fluid Transfer Drum and Tank Drainage, Shear-Sensitive Fluid Transfer SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -51 deg. F (-46 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA, NSF, 3-A, USP Class VI, ISO 10993, Japan Food Sanitation Law #370/1959, REACH Compliant, 1935/2004/EC, 10/2011/EU
Literature: Tygon S3™ Pump Tubing - Formulation E-LFL (PDF)
Other Features:
  • Longest flex life of any clear Tygon® tubing - reduces downtime due to pump failure
  • Broad Chemical Resistnace - excellent for laboratory applications
  • Can be autoclaved - suitable for high purity applications
  • Extremely low particle spallation - reliable for sensitive-fluid applications
  • Contains no BPA or Phthalates
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
AVX42003 1/16" 3/16" 1/16" 1/4" 50 PSI 29.9 in. Hg 25ft
AVX42007 1/8" 1/4" 1/16" 1/2" 34 PSI 29.9 in. Hg 25ft
AVX42012 3/16" 5/16" 1/16" 3/4" 25 PSI 29.9 in. Hg 25ft
AVX42017 1/4" 3/8" 1/16" 1" 20 PSI 15.0 in. Hg 25ft
AVX42019 1/4" 1/2" 1/8" 3/4" 35 PSI 29.9 in. Hg 25ft
AVX42022 5/16" 7/16" 1/16" 1-1/4" 16 PSI 10.0 in. Hg 25ft
AVX42029 3/8" 5/8" 1/8" 1" 25 PSI 29.9 in. Hg 25ft
AVX42038 1/2" 3/4" 1/8" 1-1/2" 20 PSI 20.0 in. Hg 25ft
AVX06057 3/4" 1-1/4" 1/4" 1-3/4" 24 PSI 29.9 in. Hg 10ft
AVX06064 1" 1-3/8" 3/16" 3-1/4" 15 PSI 5.0 in. Hg 10ft
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
