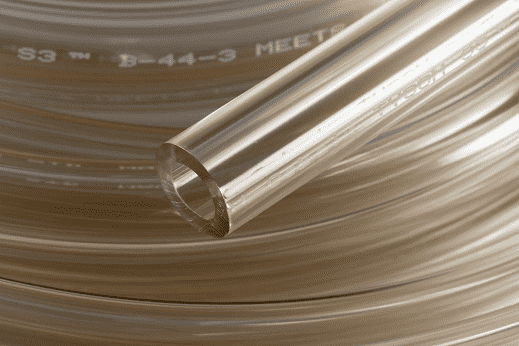

Tygon S3™ AAB00051 11/16" ID x 15/16" OD x 1/8" Wall (B-44-3) 50' Package Length - Beverage Tubing

AAB00051 Tygon S3™ by Saint Gobain | 11/16" ID x 15/16" OD x 1/8" Wall | B-44-3 | Beverage Tubing | 50' Package Length

Save $27.13 Save $27.13
$271.30
$271.30 - $271.30
$271.30
$244.17
$244.17 - $244.17
$244.17

Saint Gobain - Tygon S3™ Beverage Tubing Formulation B-44-3

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AAB00051 Saint Gobain
Brand: Tygon S3
Series: B-44-3
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.6875in
Outer Diameter: 0.9375in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, EU Food Contact Regulation (EU) No 10/2011, Japan Food Sanitation Law #370/1959, REACH Compliant, Regulation (EC) No 1935/2004

SPECIFICATIONS

Application: Beverage Dispensing, Bag-in-Box, Dairy Processing, Food Dispensing, Beverage Transfer SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: N/A Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA, 3-A and NSF, Japan Food Sanitation Law #370/1959, REACH, 1935/2004/EC, 10/2011/EU
Literature: Tygon S3™ Beverage Tubing Formulation B-44-3 PDF
Other Features:
    • Clear as glass for easy visual monitoring of flow.
    • Lightweight and flexible for easy, quick installation.
    • Broad chemical resistance.
    • Non-wetting properties allow easy cleaning and complete drainage.
    • Contains no BPA or phthalates
    • WARNING: Tygon S3™ Beverage Tubing Formulation B-44-3 is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating (in. Hg) Length
AAB00002 1/16" 1/8" 1/32" 1/4" 60 PSI 29.9 in. Hg 50ft
AAB00003 1/16" 3/16" 1/16" 1/8" 10 PSI 29.9 in. Hg 50ft
AAB00004 3/32" 5/32" 1/32" 3/8" 43 PSI 29.9 in. Hg 50ft
AAB00005 3/32" 7/32" 1/16" 1/4" 74 PSI 29.9 in. Hg 50ft
AAB00006 1/8" 3/16" 1/32" 1/2" 34 PSI 25.0 in. Hg 50ft
AAB00007 1/8" 1/4" 1/16" 3/8" 60 PSI 29.9 in. Hg 50ft
AAB00009 5/32" 7/32" 1/32" 3/4" 28 PSI 16.0 in. Hg 50ft
AAB00010 5/32" 9/32" 1/16" 1/2" 50 PSI 29.9 in. Hg 50ft
AAB00011 3/16" 1/4" 1/32" 1" 25 PSI 11.0 in. Hg 50ft
AAB00012 3/16" 5/16" 1/16" 5/8" 43 PSI 29.9 in. Hg 50ft
AAB00013 3/16" 3/8" 3/32" 1/2" 60 PSI 29.9 in. Hg 50ft
AAB00014 3/16" 7/16" 1/8" 3/8" 74 PSI 29.9 in. Hg 50ft
AAB00016 1/4" 5/16" 1/32" 1-5/8" 19 PSI 6.0 in. Hg 50ft
AAB00017 1/4" 3/8" 1/16" 1" 34 PSI 25.0 in. Hg 50ft
AAB00018 1/4" 7/16" 3/32" 3/4" 47 PSI 29.9 in. Hg 50ft
AAB00019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 50ft
AAB00022 5/16" 7/16" 1/16" 1-3/8" 28 PSI 16.0 in. Hg 50ft
AAB00023 5/16" 1/2" 3/32" 1" 40 PSI 29.9 in. Hg 50ft
AAB00024 5/16" 9/16" 1/8" 7/8" 50 PSI 29.9 in. Hg 50ft
AAB00027 3/8" 1/2" 1/16" 1-3/4" 25 PSI 11.0 in. Hg 50ft
AAB00028 3/8" 9/16" 3/32" 1-3/8" 34 PSI 25.0 in. Hg 50ft
AAB00029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 50ft
AAB00034 7/16" 11/16" 1/8" 1-3/8" 36 PSI 29.9 in. Hg 50ft
AAB00036 1/2" 5/8" 1/16" 2-7/8" 19 PSI 6.0 in. Hg 50ft
AAB00037 1/2" 11/16" 3/32" 2-1/8" 27 PSI 14.0 in. Hg 50ft
AAB00038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 25.0 in. Hg 50ft
AAB00046 5/8" 7/8" 1/8" 2-3/8" 29 PSI 16.0 in. Hg 50ft
AAB00051 11/16" 15/16" 1/8" 2-7/8" 27 PSI 13.0 in. Hg 50ft
AAB00053 3/4" 1" 1/8" 3-1/4" 25 PSI 11.0 in. Hg 50ft
AAB00059 7/8" 1-1/8" 1/8" 4-1/8" 22 PSI 8.0 in. Hg 50ft
AAB00062 1" 1-1/4" 1/8" 5-1/8" 20 PSI 6.0 in. Hg 50ft
AAB00064 1" 1-3/8" 3/16" 3-3/4" 27 PSI 14.0 in. Hg 50ft
AAB00065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 50ft
AAB00069 1-1/4" 1-1/2" 1/8" 7-3/8" 16 PSI 4.0 in. Hg 50ft
AAB00070 1-1/4" 1-5/8" 3/16" 5-1/2" 23 PSI 9.0 in. Hg 50ft
AAB00071 1-1/4" 1-3/4" 1/4" 4-3/8" 28 PSI 16.0 in. Hg 50ft
AAB00073 1-1/2" 1-7/8" 3/16" 7-1/4" 19 PSI 6.0 in. Hg 50ft
AAB00074 1-1/2" 2" 1/4" 5-7/8" 25 PSI 11.0 in. Hg 50ft
AAB00076 1-3/4" 2-1/4" 1/4" 7-1/2" 22 PSI 8.0 in. Hg 50ft
AAB00078 2" 2-1/2" 1/4" 9-3/8" 19 PSI 6.0 in. Hg 50ft
AAB02007 1/8" 1/4" 1/16" N/A N/A N/A 100ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
