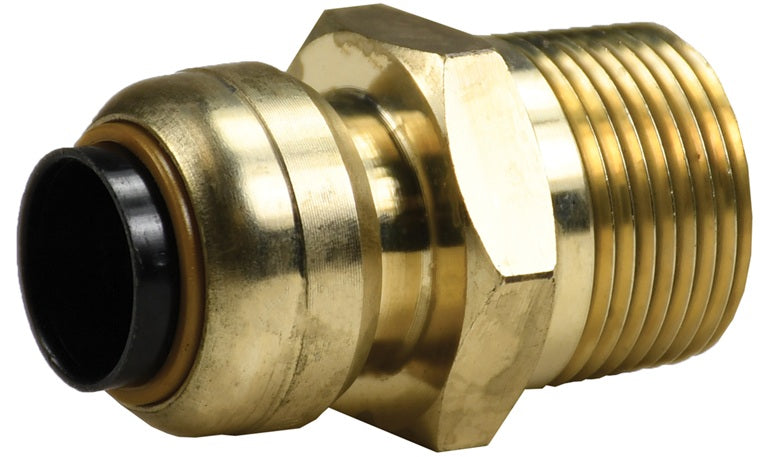

U116 by Dixon Valve | Tectite™ by Apollo® | Push to Connect Fitting | Reducing Male Connector | 3/4" Male NPT x 1" Tube Size | Forged Brass

Save $7.12

$17.80

$17.80 - $17.80

$17.80

$10.68

$10.68 - $10.68

$10.68

Dixon Valve
Tectite™ by Apollo® Push to Connect Fitting | Reducing Male Connector

For water, dry, clean air, or 100% glycol solutions only.

Connects copper, CPVC, and PEX pipe in any combination.

Approved for use underground and behind walls without access panels.

Comparable to Sharkbite®

Specifications for Variant SKU: U116 Dixon
Brand:	Apollo
Series:	Tectite
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 3/4in Male NPT
Material(s):	Brass
Special Properties:	Lead Free

Compatibility and Interchange:
Comparable to Sharkbite® Fittings.
Features:
No soldering, clamps, unions, or glue needed. Integral tube liner for PEX installations. Fittings can be rotated after assembly for easier installation in tight spaces. Easy to disconnect if needed. All Tectite by Apollo fittings are lead-free.
Material:
Forged Brass
Approvals:
Design certified and listed to ASSE 1061/NSF 61. Listed by IAPMO. Meets UPC, IPC, and cUPC requirements.
Specifications:
Pressure rating: 200 PSI at 200°F (93°C) Temperature Range: 32°F to 250°F (0°C to 121°C)

Part Number	Tube O.D.	Male NPT	Disconnect Clip (used to disconnect fitting from pipe)
U116	1"	3/4"	U714
