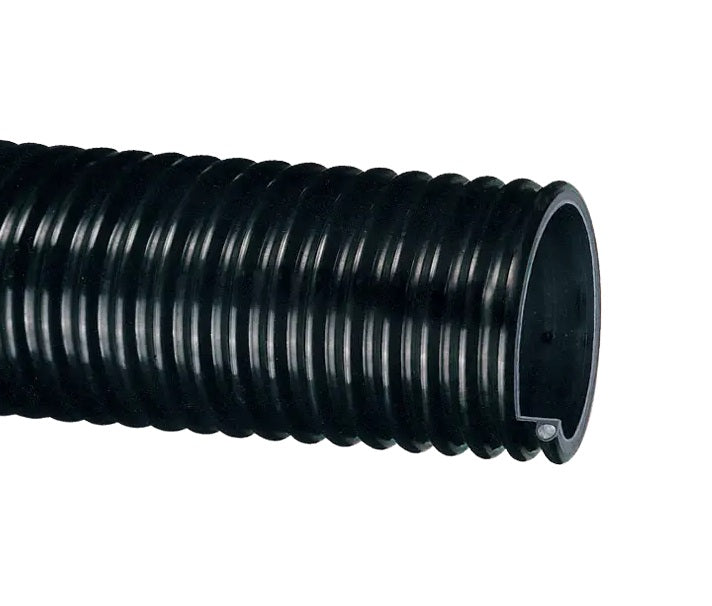

UF1-125X100 Tigerflex® Ureflex™ by Kuriyama | UF1™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane | 1-1/4" ID | 1.53" OD | 100ft Length

UF1-125X100 Tigerflex® Ureflex™ by Kuriyama | UF1™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane | 1-1/4" ID | 1.53" OD | 100ft Length

Save $84.80 Save $84.80
$479.00
$479.00 - $479.00
$479.00
$394.20
$394.20 - $394.20
$394.20
p>Kuriyama of America Inc.
Tigerflex® | Ureflex™ UF1™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane

Built for heavy-duty abrasive service.

Ideal for agricultural dry fertilizers, air seeder lines, fly ash collection, milling scrap recovery, and the vacuuming or transfer of rock, sand, gravel, crushed concrete, and shot blast media using industrial equipment and material chutes.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: UF1-125X100 Kuriyama | 100 |
Brand: Ureflex, Tigerflex
Series: UF1 Series
Hose Color(s): Black
Internal Diameter: 1.25in
Outer Diameter: 1.53in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection
Abrasion-Resistant Material Handling Hose

Kuriyama Tigerflex™ UF1 Series

Polyurethane-lined hose designed for agricultural dry fertilizers, air seeder lines, industrial vacuum equipment and severe dry abrasive material-handling applications.

⚙

Thick PU Liner

Designed for severe dry abrasive applications

⚡

Charge Reducing

Cover helps reduce static electricity buildup

❄

Cold-Flex

Remains flexible in subzero temperatures

♦

Oil Resistant

Resists most animal- and petroleum-based oils

1

What is this product used for?
  • Agricultural dry fertilizers
  • Air seeder lines
  • Fly ash collection
  • Industrial vacuum equipment
  • Material chutes
  • Heavy-duty abrasive material handling
  • Milling machine scrap recovery
  • Rock, gravel, sand and crushed concrete vacuuming
  • Shot blast recovery
2

What are the key specifications?
Tube

Polyurethane liner

Reinforcement

Rigid PVC helix

Cover

PVC

Temperature Range

-40°F (-40°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Thick Abrasion-Resistant Polyurethane Liner — Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hose.
  • Charge-Reducing Cover — Specially formulated to help prevent static electricity buildup and support smooth material flow.
  • Cold-Flex Materials — Hose remains flexible in subzero temperatures.
  • Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
  • Oil-Resistant Polyurethane Liner — Resists most animal- and petroleum-based oils.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
UF1-125X100 1-1/4" 31.8 1.53" 39.0 50 PSI 25 PSI Full 28 in Hg 2" 100 0.22
UF1-150X50 1-1/2" 38.1 1.85" 47.0 50 PSI 25 PSI Full 28 in Hg 2" 50 0.42
UF1-150X100 1-1/2" 38.1 1.85" 47.0 50 PSI 25 PSI Full 28 in Hg 2" 100 0.42
UF1-200X50 2" 50.8 2.40" 61.0 40 PSI 20 PSI Full 28 in Hg 3" 50 0.59
UF1-200X100 2" 50.8 2.40" 61.0 40 PSI 20 PSI Full 28 in Hg 3" 100 0.59
UF1-250X50 2-1/2" 63.5 3.07" 78.0 40 PSI 20 PSI Full 28 in Hg 3" 50 0.80
UF1-250X100 2-1/2" 63.5 3.07" 78.0 40 PSI 20 PSI Full 28 in Hg 3" 100 0.80
UF1-300X50 3" 76.2 3.64" 92.5 40 PSI 20 PSI Full 28 in Hg 4" 50 1.18
UF1-300X100 3" 76.2 3.64" 92.5 40 PSI 20 PSI Full 28 in Hg 4" 100 1.18
UF1-350X50 3-1/2" 88.9 4.21" 107.0 35 PSI 18 PSI Full 28 in Hg 5" 50 1.48
UF1-350X100 3-1/2" 88.9 4.21" 107.0 35 PSI 18 PSI Full 28 in Hg 5" 100 1.48
UF1-400X50 4" 101.6 4.76" 120.9 35 PSI 18 PSI Full 28 in Hg 6" 50 1.95
UF1-400X100 4" 101.6 4.76" 120.9 35 PSI 18 PSI Full 28 in Hg 6" 100 1.95
UF1-500X50 5" 127.0 5.75" 146.0 35 PSI 18 PSI 28 in Hg 25 in Hg 10" 50 2.42
UF1-500X100 5" 127.0 5.75" 146.0 35 PSI 18 PSI 28 in Hg 25 in Hg 10" 100 2.42
UF1-600X50 6" 152.4 6.81" 173.0 30 PSI 15 PSI 28 in Hg 25 in Hg 12" 50 3.50
UF1-600X100 6" 152.4 6.81" 173.0 30 PSI 15 PSI 28 in Hg 25 in Hg 12" 100 3.50
UF1-800X50 8" 203.2 9.18" 233.2 30 PSI 15 PSI 28 in Hg 25 in Hg 18" 50 5.91
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 50- and 100-foot lengths, depending on hose size.


⚠ CAUTION: Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
