p>Kuriyama of America Inc.
Tigerflex® | Ureflex™ UF2™ Series | Extra Heavy-Duty Material Handling Hose | PVC & Polyurethane

Designed for heavy-duty abrasive handling.

Ideal for fly ash collection, material chutes, milling scrap recovery, and vacuuming rock, sand, gravel, crushed concrete, and shot blast media with industrial vacuum equipment.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: UF2-300X100 Kuriyama | 100 |
Brand: Ureflex 2, Tigerflex
Series: UF2 Series
Hose Color(s): Blue
Internal Diameter: 3in
Outer Diameter: 3.70in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection, Conductive Hose Cover
Abrasion-Resistant Material Handling Hose

Kuriyama Tigerflex™ UF2 Series

Polyurethane-lined hose designed for severe dry abrasive material handling, industrial vacuum equipment, material chutes and shot blast recovery applications.

⚙

Thick PU Liner

Designed for severe dry abrasive applications

⚡

Charge Reducing

Cover helps reduce static electricity buildup

❄

Cold-Flex

Remains flexible in subzero temperatures

♦

Oil Resistant

Resists most animal- and petroleum-based oils

1

What is this product used for?
  • Fly ash collection
  • Industrial vacuum equipment
  • Material chutes
  • Heavy-duty abrasive material handling
  • Milling machine scrap recovery
  • Rock, gravel, sand and crushed concrete vacuuming
  • Shot blast recovery
2

What are the key specifications?

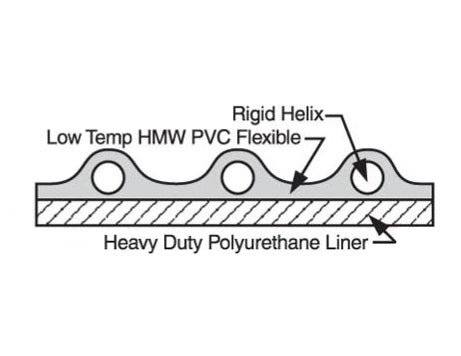

Tube

Polyurethane liner

Reinforcement

Rigid PVC helix

Cover

PVC

Temperature Range

-40°F (-40°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Extra-Thick Abrasion-Resistant Polyurethane Liner — Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hoses.
  • Charge-Reducing Cover — Specially formulated to help prevent static electricity buildup and support smooth material flow.
  • Cold-Flex Materials — Hose remains flexible in subzero temperatures.
  • Convoluted Outer Cover — The rigid helix design helps protect the hose tube from cover wear and allows the hose to slide more easily over rough surfaces.
  • Oil-Resistant Polyurethane Liner — Resists most animal- and petroleum-based oils.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
UF2-150X100 1-1/2" 38.1 1.88" 47.8 50 PSI 25 PSI Full 28 in Hg 3" 100 0.46
UF2-200X100 2" 50.8 2.44" 62.0 40 PSI 20 PSI Full 28 in Hg 4" 100 0.65
UF2-250X100 2-1/2" 63.5 3.12" 79.2 40 PSI 20 PSI Full 28 in Hg 5" 100 0.89
UF2-300X50 3" 76.2 3.70" 94.1 40 PSI 20 PSI Full 28 in Hg 6" 50 1.23
UF2-300X100 3" 76.2 3.70" 94.1 40 PSI 20 PSI Full 28 in Hg 6" 100 1.23
UF2-400X50 4" 101.6 4.80" 122.0 35 PSI 18 PSI Full 28 in Hg 10" 50 2.02
UF2-400X100 4" 101.6 4.80" 122.0 35 PSI 18 PSI Full 28 in Hg 10" 100 2.02
UF2-500X50 5" 127.0 5.81" 147.6 35 PSI 18 PSI 28 in Hg 25 in Hg 15" 50 2.50
UF2-500X100 5" 127.0 5.81" 147.6 35 PSI 18 PSI 28 in Hg 25 in Hg 15" 100 2.50
UF2-600X50 6" 152.4 6.87" 174.5 30 PSI 15 PSI 28 in Hg 25 in Hg 18" 50 3.84
UF2-600X100 6" 152.4 6.87" 174.5 30 PSI 15 PSI 28 in Hg 25 in Hg 18" 100 3.84
UF2-800X50 8" 203.2 9.18" 233.2 30 PSI 15 PSI 28 in Hg 25 in Hg 22" 50 6.52
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 50- and 100-foot lengths, depending on hose size.


⚠ CAUTION: Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.
