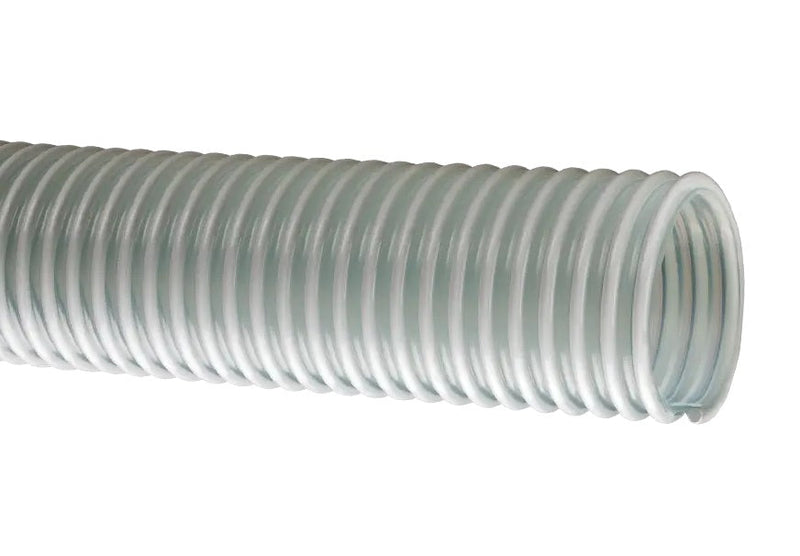

UFC400X100 Tigerflex® Ureflex™ by Kuriyama | UFC™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane | 4" ID | 4.76" OD | 100ft Length

UFC400X100 Tigerflex® Ureflex™ by Kuriyama | UFC™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane | 4" ID | 4.76" OD | 100ft Length

Save $678.41 Save $678.41
$2,637.41
$2,637.41 - $2,637.41
$2,637.41
$1,959.00
$1,959.00 - $1,959.00
$1,959.00
p>Kuriyama of America Inc.
Tigerflex® | Ureflex™ UFC™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane

Engineered for heavy-duty abrasive service.

Ideal for agricultural dry fertilizer and air seeder lines, milling scrap and shot blast recovery, and material handling with industrial vacuum and plastic processing equipment.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: UFC400X100 Kuriyama | 100 |
Brand: Ureflex, Tigerflex
Series: UFC Series
Hose Color(s): White/Off-White
Internal Diameter: 4in
Outer Diameter: 4.76in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection
Applications: Agricultural dry fertilizer.
Air seeder lines.
Industrial vacuum equipment.
Material handling - heavy duty abrasive.
Milling machine scrap recovery.
Plastic processing equipment.
Shot blast recovery.
Tube: Polyurethane liner. Reinforcement: Rigid PVC helix.
Cover: PVC. Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Thick Abrasion Resistant Polyurethane Liner - Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Charge Reducing Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains fl exible in subzero temperatures.
  • Convoluted Cover Design - Provides increased hose fl exibility.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: Hose is not to be used in combustible situations unless it has been determined by the end user the application is not suffi cient to result in propagating brush discharge.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
UFC150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in Hg 2" 0.42 lbs
UFC200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI Full 28 in Hg 3" 0.59 lbs
UFC250X100 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 20 PSI Full 28 in Hg 3" 0.80 lbs
UFC300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI Full 28 in Hg 4" 1.18 lbs
UFC400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in Hg 6" 1.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
