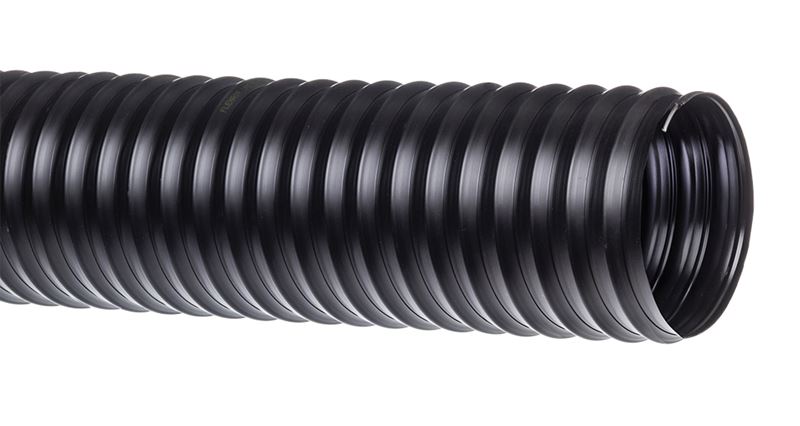

URE-BK1000X25 FLEXAIR™ by Kuriyama | Urevent™ Black | URE-BK™ Series | Polyurethane Ducting / Material Handling Hose | 10" ID | 10.33" OD | 25ft Length

Save $448.02

$1,045.77

$1,045.77 - $1,045.77

$1,045.77

$597.75

$597.75 - $597.75

$597.75

FLEXAIR™ by Kuriyama
Urevent™ Black | URE-BK™ Series | Polyurethane Ducting/Material Handling Hose

Suited for dust collection, ventilation, and fume removal in applications such as concrete resurfacing, woodworking, and general material handling, as well as for insulation blowing, oil mist collection, and lavatory waste disposal.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: URE-BK1000X25 Kuriyama \| 25 \|
Brand:	FLEXAIR
Series:	Urevent, URE-BK Series
Hose Color(s):	Black
Internal Diameter:	10in
Outer Diameter:	10.33in
Tubing Construction:	TPU
Applicable Specs & Approvals:	RoHS Compliant

General Applications:
Concrete resurfacing dust collection Ducting, ventilation & fume removal Dust control Insulation blowing Lavatory waste disposal Material handling - standard duty Oil mist collection Woodworking, furniture dust & chip control
Construction:
0.030" thick ether polyurethane (TPU) hose with steel wire helix.
Specifications:
RoHS
Service Temperature Range:
-65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)* *Actual service temperature range is application dependent
Features and Advantages:
Durable & Lightweight Polyurethane Material - Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses. Steel Wire Helix - Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation. "Cold-Flex" Material - Hose remains flexible in sub-zero temperatures. Oil Resistant Polyurethane - Resists most animal and petroleum based oils.
Notes:
Service life may vary depending on operating conditions and type of material being conveyed. CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.

Part Number 25ft Length	ID		OD		Working Pressure at 68°F	Vacuum Rating at 68°F	Min. Bend Radius at 68°F	Compression Ratio	Weight
Part Number 25ft Length	in	mm	in	mm	(PSI)	(in Hg)	in	Compression Ratio	(lbs/ft)
URE-BK200X25	2"	50.8mm	2.23"	56.6mm	31 PSI	29 in Hg	2"	3:1	0.36 lbs/ft
URE-BK250X25	2-1/2"	63.5mm	2.73"	69.3mm	31 PSI	29 in Hg	2"	3:1	0.40 lbs/ft
URE-BK300X25	3"	76.2mm	3.23"	82.0mm	30 PSI	29 in Hg	2.5"	3:1	0.44 lbs/ft
URE-BK400X25	4"	101.6mm	4.28"	108.7mm	26 PSI	22 in Hg	3.5"	3:1	0.62 lbs/ft
URE-BK500X25	5"	127.0mm	5.28"	134.1mm	22 PSI	21 in Hg	4.5"	3:1	0.65 lbs/ft
URE-BK600X25	6"	152.4mm	6.33"	160.8mm	20 PSI	19 in Hg	5.5"	3:1	0.84 lbs/ft
URE-BK800X25	8"	203.2mm	8.33"	211.6mm	14 PSI	14 in Hg	7"	3:1	1.40 lbs/ft
URE-BK1000X25	10"	255.0mm	10.33"	262.4mm	11 PSI	6 in Hg	8"	3:1	1.93 lbs/ft
URE-BK1200X25	12"	304.8mm	12.33"	313.2mm	10 PSI	5 in Hg	9"	3:1	2.26 lbs/ft
