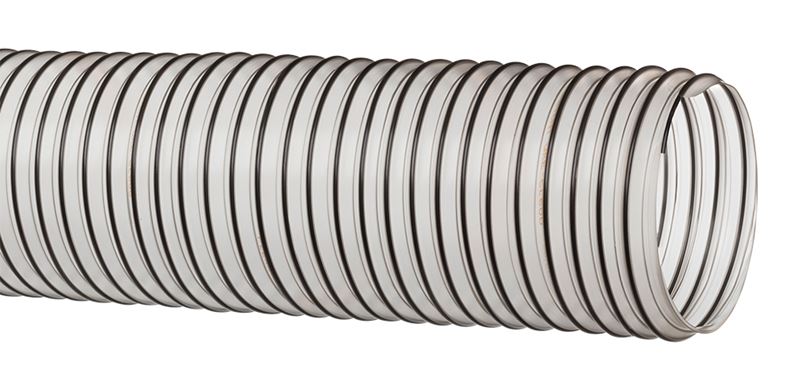

URE-CL250X25 FLEXAIR™ by Kuriyama | Urevent™ Clear | URE-CL™ Series | Food Grade Polyurethane Ducting / Material Handling Hose | 2-1/2" ID | 2.73" OD | 25ft Length

URE-CL250X25 FLEXAIR™ by Kuriyama | Urevent™ Clear | URE-CL™ Series | Food Grade Polyurethane Ducting / Material Handling Hose | 2-1/2" ID | 2.73" OD | 25ft Length

Save $217.52 Save $217.52
$433.07
$433.07 - $433.07
$433.07
$215.55
$215.55 - $215.55
$215.55

FLEXAIR™ by Kuriyama
Urevent™ Clear | URE-CL™ Series | Food Grade Polyurethane Ducting / Material Handling Hose

Designed for a wide range of applications, including dust collection, ventilation, and fume removal, as well as material handling in industries such as food processing, pharmaceuticals, woodworking, and concrete resurfacing.

Also handles oil mist, insulation blowing, and lavatory waste disposal.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: URE-CL250X25 Kuriyama | 25 |
Brand: FLEXAIR
Series: Urevent, URE-CL Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 2.50in - 2-1/2in
Outer Diameter: 2.73in
Tubing Construction: TPU
Applicable Specs & Approvals: BSE/TSE, Applicable FDA Requirements, RoHS Compliant
General Applications:
  • Concrete resurfacing dust collection
  • Ducting, ventilation & fume removal
  • Dust control
  • Food grade material handling
  • Insulation blowing
  • Lavatory waste disposal
  • Material handling - standard duty
  • Oil mist collection
  • Pharmaceutical product transfer
  • Woodworking, furniture dust & chip control
Construction:
  • 0.030" thick ether polyurethane (TPU) hose with steel wire helix.
Specifications:
  • BSE/TSE
  • FDA(03)
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Durable & Lightweight Polyurethane Material - Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
  • Steel Wire Helix - Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
  • Food Grade Material - Hose compiles with applicable FDA requirements.
  • Transparent Construction - "See-the-flow". Allows for visual confirmation of material flow.
  • "Cold-Flex" Material - Hose remains flexible in sub-zero temperatures.
  • Oil Resistant Polyurethane - Resists most animal and petroleum based oils.
  • Pthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
Part Number
25ft Length		 ID OD Working
Pressure
at 68°F		 Vacuum
Rating
at 68°F		 Min. Bend
Radius
at 68°F		 Compression
Ratio		 Weight
in mm in mm (psi) (in Hg) in (lbs/ft)
URE-CL200X25 2" 50.8mm 2.23" 56.6mm 31 PSI 29 in Hg 2" 3:1 0.36 lbs/ft
URE-CL250X25 2-1/2" 63.5mm 2.73" 69.3mm 31 PSI 29 in Hg 2" 3:1 0.40 lbs/ft
URE-CL300X25 3" 76.2mm 3.23" 82.0mm 30 PSI 29 in Hg 2.5" 3:1 0.44 lbs/ft
URE-CL400X25 4" 101.6mm 4.28" 108.7mm 26 PSI 22 in Hg 3.5" 3:1 0.62 lbs/ft
URE-CL500X25 5" 127.0mm 5.28" 134.1mm 22 PSI 21 in Hg 4.5" 3:1 0.65 lbs/ft
URE-CL600X25 6" 152.4mm 6.33" 160.8mm 20 PSI 19 in Hg 5.5" 3:1 0.84 lbs/ft
URE-CL800X25 8" 203.2mm 8.33" 211.6mm 14 PSI 14 in Hg 7" 3:1 1.40 lbs/ft
URE-CL1000X25 10" 255.0mm 10.33" 262.4mm 11 PSI 6 in Hg 8" 3:1 1.93 lbs/ft
URE-CL1200X25 12" 304.8mm 12.33" 313.2mm 10 PSI 5 in Hg 9" 3:1 2.26 lbs/ft
