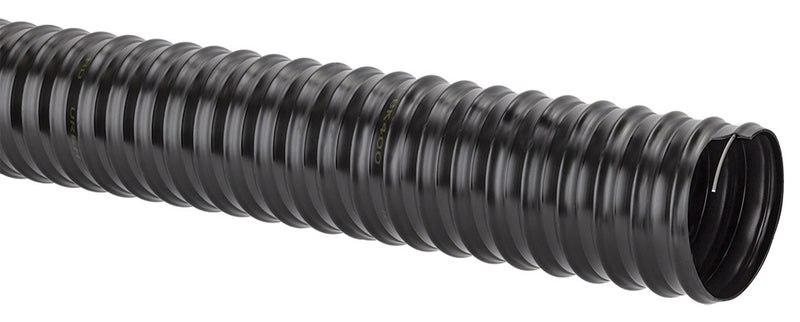

UREH-BK1000X25 FLEXAIR™ by Kuriyama | Urevent™ HD Black | UREH-BK™ Series | Heavy Duty, Polyurethane Ducting / Material Handling Hose | 10" ID | 10.37" OD | 25ft Length

UREH-BK1000X25 FLEXAIR™ by Kuriyama | Urevent™ HD Black | UREH-BK™ Series | Heavy Duty, Polyurethane Ducting / Material Handling Hose | 10" ID | 10.37" OD | 25ft Length

Save $543.92 Save $543.92
$1,363.07
$1,363.07 - $1,363.07
$1,363.07
$819.15
$819.15 - $819.15
$819.15

FLEXAIR™ by Kuriyama
Urevent™ HD Black | UREH-BK™ Series | Heavy Duty, Polyurethane Ducting/Material Handling Hose

Designed for dust collection, ventilation, and fume removal in applications such as concrete resurfacing, woodworking, and general material handling.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: UREH-BK1000X25 Kuriyama | 25 |
Brand: FLEXAIR
Series: Urevent HD, UREH-BK Series
Hose Color(s): Black
Internal Diameter: 10in
Outer Diameter: 10.37in
Tubing Construction: TPU
Applicable Specs & Approvals: BSE/TSE, RoHS Compliant
General Applications:
  • Concrete resurfacing dust collection
  • Ducting, ventilation & fume removal
  • Dust control
  • Material handling - standard duty
  • Woodworking, furniture dust and chip control
Construction:
  • 0.040" thick ether polyurethane (TPU) hose with steel wire helix.
Specifications:
  • BSE/TSE
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Durable & Lightweight Polyurethane Material - Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
  • Steel Wire Helix - Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
  • "Cold-Flex" Material - Hose remains flexible in sub-zero temperatures.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
  • Pthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
Part Number
25ft Length		 ID OD Working
Pressure
at 68°F		 Vacuum
Rating
at 68°F		 Min. Bend
Radius
at 68°F		 Compression
Ratio		 Weight
in mm in mm (PSI) (in Hg) in (lbs/ft)
UREH-BK400X25 4" 101.6mm 4.32" 109.73mm 33 PSI 25 in Hg 4" 2:1 0.73 lbs/ft
UREH-BK500X25 5" 127.0mm 5.32" 135.13mm 31 PSI 22 in Hg 5" 2:1 0.84 lbs/ft
UREH-BK600X25 6" 152.4mm 6.37" 161.80mm 29 PSI 21 in Hg 6" 2:1 1.20 lbs/ft
UREH-BK800X25 8" 203.2mm 8.37" 212.60mm 22 PSI 16 in Hg 7.5" 2:1 1.67 lbs/ft
UREH-BK1000X25 10" 255.0mm 10.37" 263.40mm 21 PSI 9 in Hg 9" 2:1 2.03 lbs/ft
UREH-BK1200X25 12" 304.8mm 12.23" 310.64mm 16 PSI 7 in Hg 10" 2:1 2.47 lbs/ft
