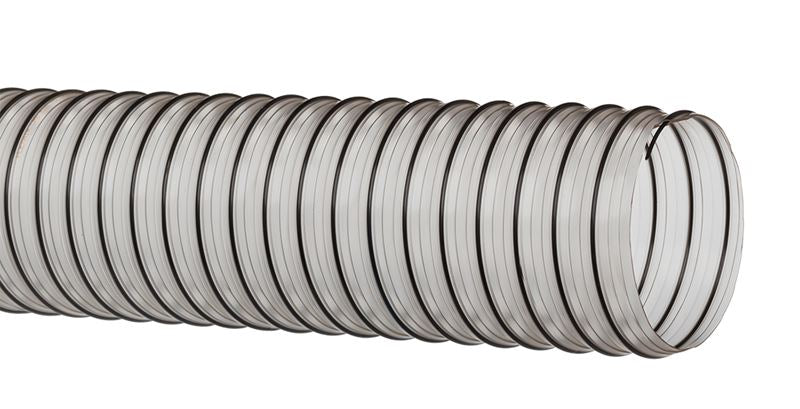

UREH-CL500X25 FLEXAIR™ by Kuriyama | Urevent™ HD Clear | UREH-CL™ Series | Heavy Duty, Food Grade Polyurethane Ducting / Material Handling Hose | 5" ID | 5.32" OD | 25ft Length

UREH-CL500X25 FLEXAIR™ by Kuriyama | Urevent™ HD Clear | UREH-CL™ Series | Heavy Duty, Food Grade Polyurethane Ducting / Material Handling Hose | 5" ID | 5.32" OD | 25ft Length

Save $241.04 Save $241.04
$665.39
$665.39 - $665.39
$665.39
$424.35
$424.35 - $424.35
$424.35

FLEXAIR™ by Kuriyama
Urevent™ HD Clear | UREH-CL™ Series | Heavy Duty, Food Grade Polyurethane Ducting/Material Handling Hose

Ideal for dust collection, ventilation, and fume removal in applications such as concrete resurfacing, woodworking, and general material handling, including food-grade and pharmaceutical product transfer.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: UREH-CL500X25 Kuriyama | 25 |
Brand: FLEXAIR
Series: Urevent HD, UREH-CL Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.32in
Tubing Construction: TPU
Applicable Specs & Approvals: BSE/TSE, Applicable FDA Requirements, RoHS Compliant
General Applications:
  • Concrete resurfacing dust collection
  • Ducting, ventilation & fume removal
  • Dust control
  • Food grade material handling
  • Material handling - standard duty
  • Pharmaceutical product transfer
  • Woodworking, furniture dust & chip control
Construction:
  • 0.040" thick ether polyurethane (TPU) hose with steel wire helix
Specifications:
  • BSE/TSE
  • FDA(03)
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Durable & Lightweight Polyurethane Material - Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
  • Steel Wire Helix - Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
  • Food Grade Material - Hose complies with applicable FDA requirements.
  • Transparent Construction - "See-the-flow". Allows for visual confirmation of material flow.
  • "Cold-Flex" Material - Hose remains flexible in sub-zero temperatures.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
  • Pthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
Part Number
25ft Length		 ID OD Working
Pressure
at 68°F		 Vacuum
Rating
at 68°F		 Min. Bend
Radius
at 68°F		 Compression
Ratio		 Weight
in mm in mm (PSI) (in Hg) in (lbs/ft)
UREH-CL400X25 4" 101.6mm 4.32" 109.73mm 33 PSI 25 in Hg 4" 2:1 0.73 lbs/ft
UREH-CL500X25 5" 127.0mm 5.32" 135.13mm 31 PSI 22 in Hg 5" 2:1 0.84 lbs/ft
UREH-CL600X25 6" 152.4mm 6.37" 161.80mm 29 PSI 21 in Hg 6" 2:1 1.20 lbs/ft
UREH-CL800X25 8" 203.2mm 8.37" 212.60mm 22 PSI 16 in Hg 7.5" 2:1 1.67 lbs/ft
UREH-CL1000X25 10" 255.0mm 10.37" 263.40mm 21 PSI 9 in Hg 9" 2:1 2.03 lbs/ft
UREH-CL1200X25 12" 304.8mm 12.23" 310.64mm 16 PSI 7 in Hg 10" 2:1 2.47 lbs/ft
