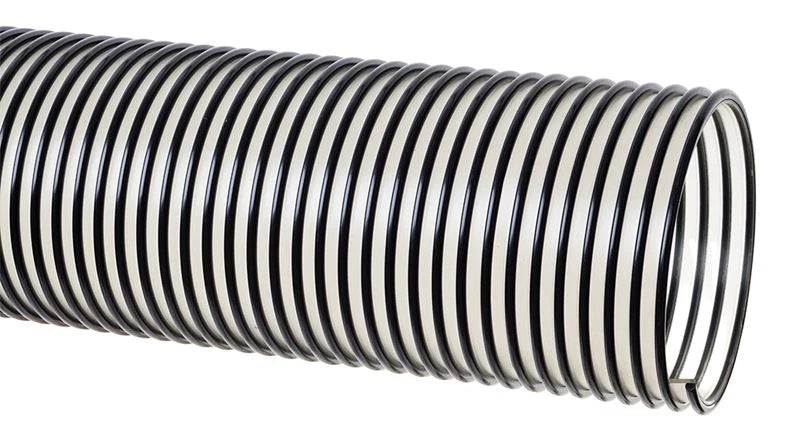

UV2-250X60 Tigerflex® Urevac™ 2 by Kuriyama | UV2™ Series | Medium-Duty Ducting/Material Handling Hose | PVC & Polyurethane (TPU) | 2-1/2" ID | 2.96" OD | 60ft Length

UV2-250X60 Tigerflex® Urevac™ 2 by Kuriyama | UV2™ Series | Medium-Duty Ducting/Material Handling Hose | PVC & Polyurethane (TPU) | 2-1/2" ID | 2.96" OD | 60ft Length

Save $198.05 Save $198.05
$828.05
$828.05 - $828.05
$828.05
$630.00
$630.00 - $630.00
$630.00
p>Kuriyama of America Inc.
Tigerflex® | Urevac™ 2 UV2™ Series | Medium-Duty Ducting/Material Handling Hose | PVC & Polyurethane (TPU)

Engineered for agricultural and industrial use.

Ideal for dry fertilizer, air seeder lines, dust control, and medium-duty material handling, including wand hose applications.

Made in the USA.


Package Quantity: 60 Foot

Specifications for Variant SKU: UV2-250X60 Kuriyama | 60 |
Brand: Urevac 2, Tigerflex
Series: UV2 Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 2.96in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection
Medium-Duty Material Handling Hose

Kuriyama Tigerflex™ UV2 Series

Polyurethane-lined hose designed for agricultural dry fertilizer, air seeder lines, dust control and medium-duty material-handling applications.

⚙

PU Liner

Abrasion-resistant ester polyurethane construction

⚡

Charge Reducing

Cover helps reduce static electricity buildup

❄

Cold-Flex

Remains flexible in subzero temperatures

♦

Oil Resistant

Resists most animal- and petroleum-based oils

1

What is this product used for?
  • Agricultural dry fertilizer
  • Air seeder lines
  • Dust control
  • Medium-duty material handling
  • Wand hose
2

What are the key specifications?
Tube

Ester polyurethane (TPU) liner

Reinforcement

Rigid PVC helix

Cover

PVC

Temperature Range

-40°F (-40°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Extra-Thick Abrasion-Resistant Polyurethane Liner — Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hoses.
  • Charge-Reducing Cover — Specially formulated to help prevent static electricity buildup and support smooth material flow.
  • Cold-Flex Materials — Hose remains flexible in subzero temperatures.
  • Convoluted Outer Cover — The rigid helix helps protect the hose tube from cover wear and allows the hose to slide more easily over rough surfaces.
  • Oil-Resistant Polyurethane Liner — Resists most animal- and petroleum-based oils.
  • Made in the USA — Manufactured in the United States.
4

Which sizes are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
UV2-150X60 1-1/2" 38.1 1.87" 47.5 25 PSI 10 PSI 22 in Hg 16 in Hg 1-1/2" 60 0.29
UV2-200X60 2" 50.8 2.47" 62.7 25 PSI 10 PSI 21 in Hg 14 in Hg 2-1/2" 60 0.40
UV2-250X60 2-1/2" 63.5 2.96" 75.2 20 PSI 8 PSI 19 in Hg 12 in Hg 3" 60 0.53
UV2-300X60 3" 76.2 3.54" 89.8 20 PSI 8 PSI 18 in Hg 11 in Hg 4" 60 0.67
UV2-400X60 4" 101.6 4.57" 116.1 15 PSI 7 PSI 13 in Hg 9 in Hg 6" 60 1.02
UV2-500X60 5" 127.0 5.58" 141.7 15 PSI 7 PSI 10 in Hg 7 in Hg 8" 60 1.22
UV2-600X60 6" 152.4 6.62" 168.1 10 PSI 5 PSI 7 in Hg 5 in Hg 10" 60 1.68
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 60-foot lengths.


⚠ CAUTION: Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
