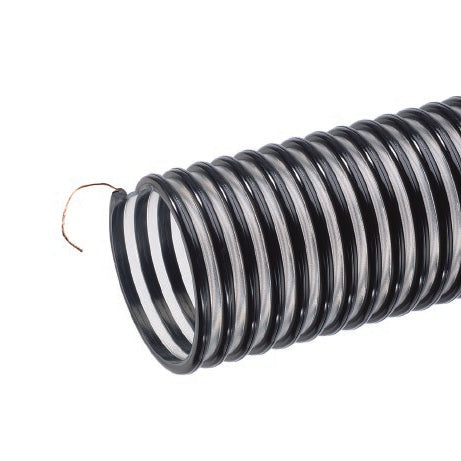

UV3-400X100 Tigerflex® Urevac™ 3 by Kuriyama | UV3™ Series | Heavy Duty Material Handling Hose | with Grounding Wire | PVC & Polyurethane | 4" ID | 4.66" OD | 100ft Length

UV3-400X100 Tigerflex® Urevac™ 3 by Kuriyama | UV3™ Series | Heavy Duty Material Handling Hose | with Grounding Wire | PVC & Polyurethane | 4" ID | 4.66" OD | 100ft Length

$0.00 - $0.00
$0.00
$2,178.00
$2,178.00 - $2,178.00
$2,178.00
p>Kuriyama of America Inc.
Tigerflex® | Urevac™ 3 UV3™ Series | Heavy Duty Material Handling Hose with Grounding Wire | PVC & Polyurethane

Engineered for heavy-duty abrasive service.

Ideal for dust collection, milling scrap recovery, and material handling in plastic processing equipment.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: UV3-400X100 Kuriyama | 100 |
Brand: Urevac 3, Tigerflex
Series: UV3 Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.66in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection
Transparent Abrasive Material Handling Hose

Kuriyama Tigerflex™ UV3 Series

Transparent, polyurethane hose designed for dust collection, plastic processing equipment and severe dry abrasive material-handling applications.

⚙

Thick PU Tube

Designed for severe dry abrasive applications

⚡

Grounding Wire

Helps dissipate static charge when properly grounded

◎

See the Flow

Transparent construction provides visual confirmation

❄

Cold-Flex

Remains flexible in subzero temperatures

1

What is this product used for?
  • Dust collection
  • Heavy-duty abrasive material handling
  • Milling machine scrap recovery
  • Plastic processing equipment
2

What are the key specifications?
Tube

Single-ply polyurethane

Reinforcement

Rigid PVC helix and grounding wire

Cover

Not separately specified

Temperature Range

-40°F (-40°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Thick Abrasion-Resistant Single-Ply Polyurethane Tube — Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hoses.
  • Grounding Wire — Multi-strand wire helps reduce static electricity buildup and support smooth material flow. It is embedded within the rigid helix to help prevent contamination of transferred materials.
  • Transparent Construction — See-the-flow design allows visual confirmation of material movement.
  • Cold-Flex Materials — Hose remains flexible in subzero temperatures.
  • Easy-Slide Helix — The rigid helix helps protect the hose tube from wear and allows the hose to slide more easily over rough surfaces.
  • Oil-Resistant Polyurethane — Resists most animal- and petroleum-based oils.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
UV3-300X50 3" 76.2 3.60" 91.4 40 PSI 20 PSI Full 28 in Hg 9" 50 0.91
UV3-300X100 3" 76.2 3.60" 91.4 40 PSI 20 PSI Full 28 in Hg 9" 100 0.91
UV3-400X50 4" 101.6 4.66" 118.4 35 PSI 17 PSI 28 in Hg 25 in Hg 12" 50 1.50
UV3-400X100 4" 101.6 4.66" 118.4 35 PSI 17 PSI 28 in Hg 25 in Hg 12" 100 1.50
UV3-500X50 5" 127.0 5.50" 145.0 35 PSI 17 PSI 28 in Hg 25 in Hg 14" 50 1.82
UV3-600X50 6" 152.4 6.65" 172.0 30 PSI 15 PSI 25 in Hg 20 in Hg 16" 50 2.24
UV3-800X50 8" 203.5 8.76" 223.0 30 PSI 15 PSI 25 in Hg 20 in Hg 18" 50 3.00
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 50- and 100-foot lengths, depending on hose size.


⚠ CAUTION: The grounding wire is designed to help dissipate static charge only when it is extracted and connected to ground. Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
