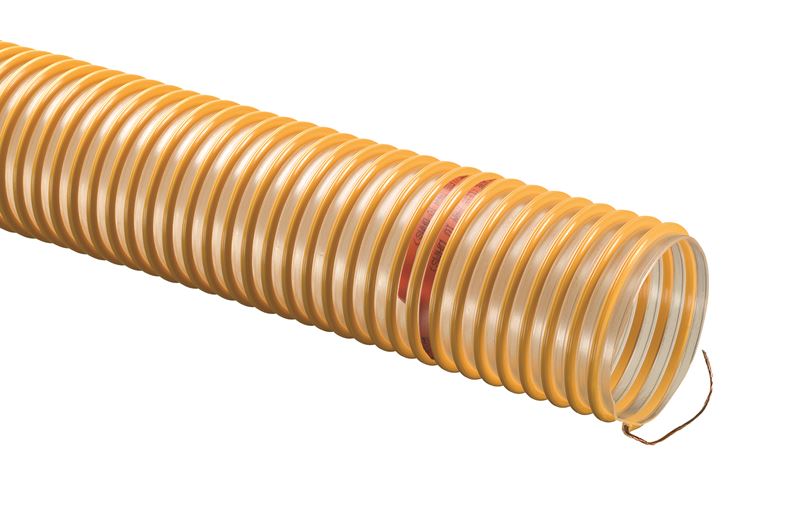

UVE-200X100 Tigerflex™ by Kuriyama | Urevac™ 1 | UVE™ Series | Polyurethane Ducting / Material Handling Hose With Grounding Wire | 2" ID | 2.39" OD | 100ft Length

Save $347.98

$1,126.18

$1,126.18 - $1,126.18

$1,126.18

$778.20

$778.20 - $778.20

$778.20

Tigerflex™ by Kuriyama
Urevac™ 1 | UV1™ / UVE™ Series | Polyurethane Ducting / Material Handling Hose

Ideal for dust collection, ventilation, and fume removal, as well as for insulation blowing and standard-duty material handling applications such as material chutes and concrete resurfacing.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: UVE-200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	Urevac 1, UVE Series
Hose Color(s):	Yellow & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.39in
Tubing Construction:	TPU
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Ground Wire in Hose

General Applications:
Concrete resurfacing dust collection Ducting, ventilation and fume removal Dust collection Insulation blowing Material chutes Material handling - standard duty
Construction:
Ester polyurethane (TPU) tube with rigid PVC helix.
Specifications:
Phthalate Free RoHS
Service Temperature Range:
-40°F (-40°C) to +150°F (+65°C)* *Actual service temperature range is application dependent
Features and Advantages:
Durable Lightweight Polyurethane Tube - Designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. "Cold-Flex" Materials - Hose remains flexible in subzero temperatures. Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils. Grounding Wire (UVE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials. Phthalate Free.
Notes:
Service life may vary depending on operating conditions and type of material being conveyed. CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.

UV1™ Series
Part Number 50ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius at 68°F	Weight
Part Number 50ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	in	(lbs/ft)
UV1-150X50	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22 in Hg	14 in Hg	0.75"	0.23 lbs/ft
UV1-200X50	2"	50.8mm	2.39"	60.7mm	15 PSI	6 PSI	21 in Hg	12 in Hg	1.5"	0.32 lbs/ft
UV1-250X50	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in Hg	10 in Hg	1.5"	0.39 lbs/ft
UV1-300X50	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in Hg	10 in Hg	2.5"	0.58 lbs/ft
UV1-400X50	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in Hg	8 in Hg	3"	0.77 lbs/ft
UV1-500X50	5"	127.0mm	5.50"	139.7mm	7 PSI	3 PSI	10 in Hg	7 in Hg	4"	0.89 lbs/ft
UV1-600X50	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in Hg	5 in Hg	5"	1.15 lbs/ft
UV1-800X50	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in Hg	3 in Hg	7"	1.75 lbs/ft

UVE™ Series \| with Grounding Wire
Part Number 50ft Length	Part Number 100ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius at 68°F	Weight
Part Number 50ft Length	Part Number 100ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	in	(lbs/ft)
UVE-200X50	UV1-200X100	2"	50.8mm	2.39"	60.7mm	15 PSI	6 PSI	21 in Hg	12 in Hg	1.5"	0.32 lbs/ft
UVE-300X50	UVE-300X100	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in Hg	10 in Hg	2.5"	0.58 lbs/ft
UVE-400X50	UVE-400X100	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in Hg	8 in Hg	3"	0.77 lbs/ft
UVE-600X50	UVE-600X100	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in Hg	5 in Hg	5"	1.15 lbs/ft
