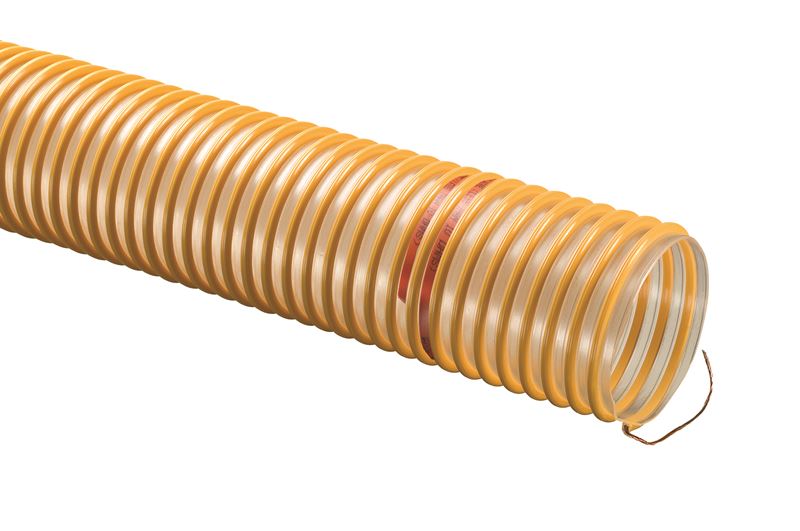

UVE-400X100 Tigerflex™ by Kuriyama | Urevac™ 1 | UVE™ Series | Polyurethane Ducting / Material Handling Hose With Grounding Wire | 4" ID | 4.50" OD | 100ft Length

UVE-400X100 Tigerflex™ by Kuriyama | Urevac™ 1 | UVE™ Series | Polyurethane Ducting / Material Handling Hose With Grounding Wire | 4" ID | 4.50" OD | 100ft Length

Save $668.22 Save $668.22
$2,173.02
$2,173.02 - $2,173.02
$2,173.02
$1,504.80
$1,504.80 - $1,504.80
$1,504.80

Tigerflex™ by Kuriyama
Urevac™ 1 | UV1™ / UVE™ Series | Polyurethane Ducting / Material Handling Hose

Ideal for dust collection, ventilation, and fume removal, as well as for insulation blowing and standard-duty material handling applications such as material chutes and concrete resurfacing.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: UVE-400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: Urevac 1, UVE Series
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.50in
Tubing Construction: TPU
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Ground Wire in Hose
General Applications:
  • Concrete resurfacing dust collection
  • Ducting, ventilation and fume removal
  • Dust collection
  • Insulation blowing
  • Material chutes
  • Material handling - standard duty
Construction:
  • Ester polyurethane (TPU) tube with rigid PVC helix.
Specifications:
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -40°F (-40°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Durable Lightweight Polyurethane Tube - Designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • "Cold-Flex" Materials - Hose remains flexible in subzero temperatures.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
  • Grounding Wire (UVE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
UV1™ Series
Part Number
50ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F in (lbs/ft)
UV1-150X50 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in Hg 14 in Hg 0.75" 0.23 lbs/ft
UV1-200X50 2" 50.8mm 2.39" 60.7mm 15 PSI 6 PSI 21 in Hg 12 in Hg 1.5" 0.32 lbs/ft
UV1-250X50 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in Hg 10 in Hg 1.5" 0.39 lbs/ft
UV1-300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 2.5" 0.58 lbs/ft
UV1-400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 8 in Hg 3" 0.77 lbs/ft
UV1-500X50 5" 127.0mm 5.50" 139.7mm 7 PSI 3 PSI 10 in Hg 7 in Hg 4" 0.89 lbs/ft
UV1-600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 5" 1.15 lbs/ft
UV1-800X50 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in Hg 3 in Hg 7" 1.75 lbs/ft
UVE™ Series | with Grounding Wire
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F in (lbs/ft)
UVE-200X50 UV1-200X100 2" 50.8mm 2.39" 60.7mm 15 PSI 6 PSI 21 in Hg 12 in Hg 1.5" 0.32 lbs/ft
UVE-300X50 UVE-300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 2.5" 0.58 lbs/ft
UVE-400X50 UVE-400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 8 in Hg 3" 0.77 lbs/ft
UVE-600X50 UVE-600X100 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 5" 1.15 lbs/ft
