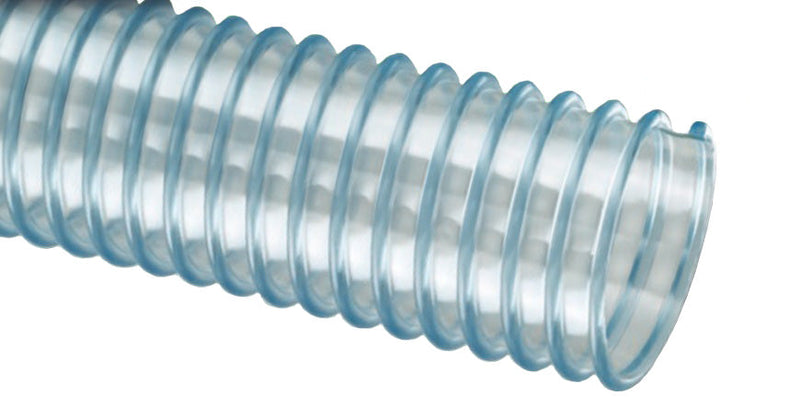

UVF300X50 Tigerflex™ by Kuriyama | Urevac™ Food | UVF™ Series | Food Grade Polyurethane Ducting / Material Handling Hose | 3" ID | 3.46" OD | 50ft Length

Save $250.78

$764.08

$764.08 - $764.08

$764.08

$513.30

$513.30 - $513.30

$513.30

Tigerflex™ by Kuriyama
Urevac™ Food | UVF™ / UVFE™ Series | Food Grade Polyurethane Ducting/Material Handling Hose

Well suited for ducting, ventilation, and fume removal, as well as food-grade blower and material handling systems and pharmaceutical product transfer.

Made in the USA.

Package Quantity: 50 Foot

Specifications for Variant SKU: UVF300X50 Kuriyama \| 50 \|
Brand:	Tigerflex
Series:	Urevac Food, UVF Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	3in
Outer Diameter:	3.46in
Tubing Construction:	TPU
Applicable Specs & Approvals:	BSE/TSE, Applicable FDA Requirements, RoHS Compliant, Applicable USDA Requirements
Special Properties:	Ground Wire in Hose

Food Grade Ducting Hose

Kuriyama UVF Series

Lightweight ester polyurethane (TPU) food grade hose with a rigid PVC helix, built for ducting, dust collection, and standard-duty food and pharmaceutical material handling.

✓

Food Grade

Complies with applicable FDA requirements; USDA accepted

◎

See-the-Flow

Transparent tube for visual confirmation of material flow

❄

Cold-Flex

Stays flexible in sub-zero temperatures

⚙

Abrasion Resistant

Outlasts similar rubber or PVC hoses in dry service

1

What is this product used for?

Ducting, ventilation and fume removal
Dust collection
Food grade blower and ducting systems
Food grade material handling — standard duty
Pharmaceutical product transfer

2

What are the key specifications?

Construction

Ester polyurethane (TPU) tube with rigid PVC helix

Service Temperature Range

-40°F (-40°C) to +150°F (+65°C)*

Compliance

BSE/TSE · FDA(03) · USDA · RoHS · Phthalate Free

Standard Length

50 ft

Size Range

1-1/2" to 8" ID

*Actual service temperature range is application dependent.

3

What are the main product features?

Durable Lightweight Polyurethane Tube — Designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
Food Grade Materials — Hose complies with applicable FDA requirements. Hose approved by USDA(12) for use in meat and poultry plants.
Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
"Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
Easy Slide Helix — Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Oil Resistant Polyurethane Hose — Resists most animal and petroleum based oils.
Phthalate Free — Made without phthalate plasticizers.

4

Which sizes are available?

Part Number (50 ft Length)	ID	OD	Working Pressure (PSI)		Vacuum Rating (in Hg)		Min. Bend Radius at 68°F	Weight (lbs/ft)
Part Number (50 ft Length)	ID	OD	at 68°F	at 104°F	at 68°F	at 104°F	Min. Bend Radius at 68°F	Weight (lbs/ft)
UVF150X50	1-1/2" (38.1 mm)	1.82" (46.2 mm)	20	7	22	14	1"	0.23
UVF200X50	2" (50.8 mm)	2.39" (60.7 mm)	15	6	21	12	1.5"	0.32
UVF250X50	2-1/2" (63.5 mm)	2.89" (73.4 mm)	10	5	19	10	1.5"	0.39
UVF300X50	3" (76.2 mm)	3.46" (87.9 mm)	10	5	18	10	2.5"	0.55
UVF400X50	4" (101.6 mm)	4.50" (114.3 mm)	8	4	13	8	3"	0.77
UVF500X50	5" (127.0 mm)	5.50" (139.7 mm)	7	3	10	7	4"	0.89
UVF600X50	6" (152.4 mm)	6.54" (166.1 mm)	6	3	7	5	5"	1.15
UVF800X50	8" (203.2 mm)	8.59" (218.1 mm)	4	2	5	3	7"	1.75

i

Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

How is this product sold?

Sold in standard 50 ft lengths.
