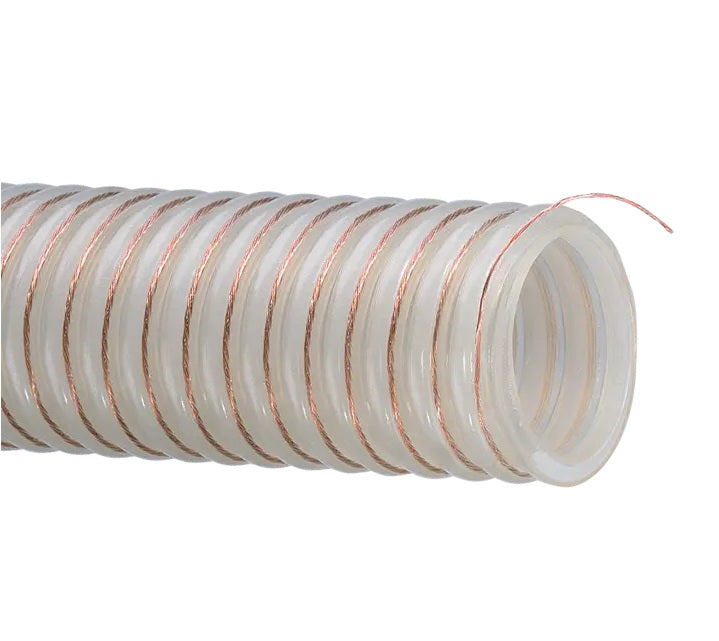

UVPE300X100 Tigerflex® by Kuriyama | UVPE™ Series | Heavy-Duty Material Handling Hose | with Grounding Wire | Polyurethane & Polypropylene | 3" ID | 3.64" OD | 100ft Length

UVPE300X100 Tigerflex® by Kuriyama | UVPE™ Series | Heavy-Duty Material Handling Hose | with Grounding Wire | Polyurethane & Polypropylene | 3" ID | 3.64" OD | 100ft Length

Save $679.63 Save $679.63
$3,427.63
$3,427.63 - $3,427.63
$3,427.63
$2,748.00
$2,748.00 - $2,748.00
$2,748.00
p>Kuriyama of America Inc.
Tigerflex® | UVPE™ Series | Heavy-Duty Material Handling Hose with Grounding Wire | Polyurethane & Polypropylene

Engineered for heavy-duty abrasive material handling.

Ideal for use with plastic processing equipment.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: UVPE300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: UVPE Series
Hose Color(s): White/Off-White
Internal Diameter: 3in
Outer Diameter: 3.64in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection
Applications: Material handling - heavy duty abrasive.
Plastic processing equipment.
Tube: Polyurethane. Reinforcement: Rigid polypropylene helix.
Cover: - Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Extra Thick Abrasion Resistant Polyurethane Liner - Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in subzero temperatures.
  • Convoluted Outer Cover - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not suffi cient to result in propagating brush discharge.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
UVPE150X100 1-1/2" 38.1mm 1.87" 47.5mm 20 PSI 7 PSI 22 in Hg 14 in Hg 3" 0.39 lbs
UVPE200X100 2" 50.8mm 2.44" 62.0mm 15 PSI 6 PSI 21 in Hg 12 in Hg 4" 0.48 lbs
UVPE250X100 2-1/2" 63.5mm 2.99" 75.9mm 10 PSI 5 PSI 19 in Hg 10 in Hg 5" 0.55 lbs
UVPE300X100 3" 76.2mm 3.64" 92.5mm 10 PSI 5 PSI 18 in Hg 10 in Hg 6" 0.68 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
