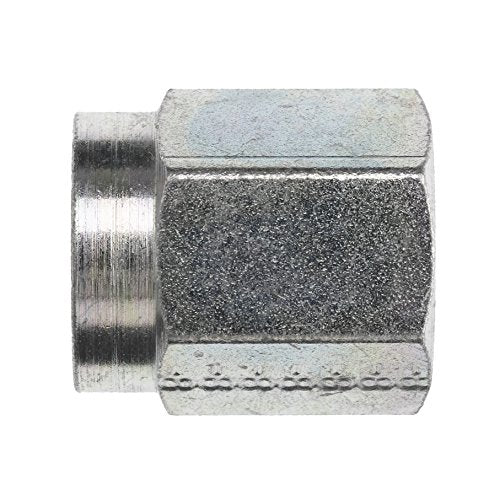

V0318-08 by Brennan Inc. | -08 Female JIC Flareless Nut | Steel

V0318-08 by Brennan Inc. | -08 Female JIC Flareless Nut | Steel

Save $0.61 Save $0.61
$5.49
$5.49 - $5.49
$5.49
$4.88
$4.88 - $4.88
$4.88

Brennan Inc.
Tube Fittings & Adapters: V0318 - Female JIC Flareless Nut
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: V0318-08 Brennan
Material(s): Steel
Part Number Material Tube O.D. B1 Thread L Length M.M. C Hex C Hex M.M.
V0318-04 Steel 1/4" 7/16-20" 0.830" 21.08mm 9/16" 0.562" 14.28mm
V0318-05 Steel 5/16" 1/2-20" 0.830" 21.08mm 5/8" 0.625" 15.87mm
V0318-06 Steel 3/8" 9/16-18" 0.860" 21.84mm 11/16" 0.687" 17.46mm
V0318-08 Steel 1/2" 3/4-16" 1.085" 27.56mm 7/8" 0.875" 22.23mm
V0318-08 Steel 1/2" 3/4-16" 1.085" 27.56mm 7/8" 0.875" 22.23mm
V0318-10 Steel 5/8" 7/8-14" 1.125" 28.57mm 1" 1.000" 25.40mm
V0318-12 Steel 3/4" 1-1/16-12" 1.365" 34.67mm 1-1/4" 1.250" 28.57mm
V0318-16 Steel 1" 1-5/16-12" 1.400" 35.56mm 1-1/2" 1.500" 38.10mm
V0318-20 Steel 1-1/4" 1-5/8-12" 1.800" 45.72mm 2" 2.000" 50.80mm
