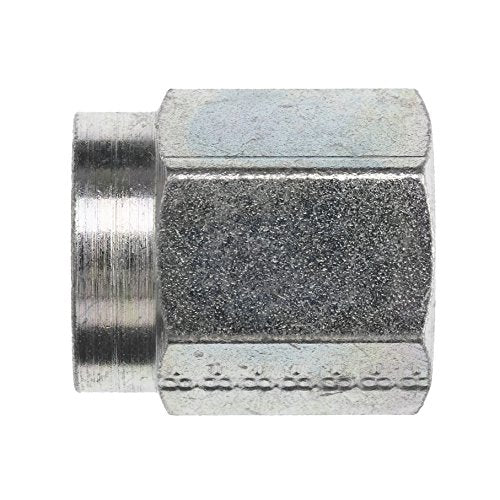

V0318-12 by Brennan Inc. | -12 Female JIC Flareless Nut | Steel

V0318-12 by Brennan Inc. | -12 Female JIC Flareless Nut | Steel

$11.32 - $11.32
$11.32
$14.37
$14.37 - $14.37
$14.37

Brennan Inc.
Tube Fittings & Adapters: V0318 - Female JIC Flareless Nut
Specifications for Variant SKU: V0318-12 Brennan
Ends Configuration: 3/4in Female JIC
Material(s): Steel
Part Number Material Tube O.D. B1 Thread L Length M.M. C Hex C Hex M.M.
V0318-04 Steel 1/4" 7/16-20" 0.830" 21.08mm 9/16" 0.562" 14.28mm
V0318-05 Steel 5/16" 1/2-20" 0.830" 21.08mm 5/8" 0.625" 15.87mm
V0318-06 Steel 3/8" 9/16-18" 0.860" 21.84mm 11/16" 0.687" 17.46mm
V0318-08 Steel 1/2" 3/4-16" 1.085" 27.56mm 7/8" 0.875" 22.23mm
V0318-08 Steel 1/2" 3/4-16" 1.085" 27.56mm 7/8" 0.875" 22.23mm
V0318-10 Steel 5/8" 7/8-14" 1.125" 28.57mm 1" 1.000" 25.40mm
V0318-12 Steel 3/4" 1-1/16-12" 1.365" 34.67mm 1-1/4" 1.250" 28.57mm
V0318-16 Steel 1" 1-5/16-12" 1.400" 35.56mm 1-1/2" 1.500" 38.10mm
V0318-20 Steel 1-1/4" 1-5/8-12" 1.800" 45.72mm 2" 2.000" 50.80mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
