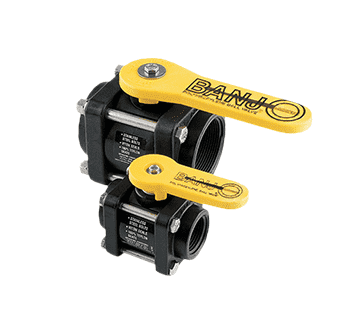

V100FP Banjo Polypropylene 4 Bolt Ball Valve - Full Port - 1" Female NPT x 1" Female NPT - Opening Thru Ball: 1" - 150 PSI

V100FP by Banjo | 4 Bolt Ball Valve | Full Port | 1" Female NPT x 1" Female NPT | Opening Thru Ball: 1" | 300 PSI | Polypropylene

Save $449.26 Save $449.26
$480.46
$480.46 - $480.46
$480.46
$31.20
$31.20 - $31.20
$31.20

Banjo Valves
Bolted Ball Valves - 4 Bolt Valves - Polypropylene - Female NPT x Female NPT
Specifications for Variant SKU: V100FP Banjo
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • FKM (viton type) seals
  • Precision molded polypropylene is reinforced with fiberglass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bush ings and seats cannot stick or bind
  • Stainless steel bolts
Part Number Port Type Female
NPT		 Opening
Thru Ball		 Max. PSI Dimensions
A B C D E
V050 Full 1/2" x 1/2" 3/4" 300 3.44" 3.37" 2.06" 1.25" 2.50"
V075 Full 3/4" x 3/4" 3/4" 300 3.44" 3.37" 2.06" 1.25" 2.50"
V100 Standard 1" x 1" 3/4" 300 3.44" 3.37" 2.06" 1.25" 2.50"
V100FP Full 1" x 1" 1" 300 4.19" 3.31" 2.44" 1.81" 3.50"
V125 Standard 1-1/4" x 1-1/4" 1" 300 4.19" 3.31" 2.44" 1.81" 3.50"
V125FP Full 1-1/4" x 1-1/4" 1-1/2" 300 4.72" 5.90" 2.70" 1.92" 3.50"
V150 Full 1-1/2" x 1-1/2" 1-1/2" 300 4.72" 5.90" 2.70" 1.92" 3.50"
V200 Standard 2" x 2" 1-1/2" 300 4.72" 5.90" 2.70" 1.92" 3.50"
Replacement Parts for V050, V075, V100
Item Part Number Description Quantity Required
1 V07151A Stem 1
2 V10153A Handle 1
3 V07254 Valve Body 1
4 V07155* Valve Ball 1
5 V07257 3/4" End Plate 2
5 V07256 1" End Plate 2
7 V07264* FKM (viton type) Valve Body O-Ring 2
9 V07060* Thrust Washer 1
11 V07018 1/4" SS Lock Washer 4
12 V07019 1/4" SS Nut 4
13 V10020A #10 x 3/4" SS Handle Bolt 1
14 V07021A SS Handle Washer 1
15 V07163* FKM (viton type) Stem O-Ring 1

* INCLUDED in the Repair Kit

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
