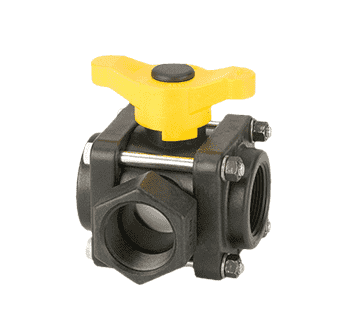

V125SL Banjo Polypropylene 3-Way Ball Valve - Side Load - 1-1/4" Female NPT - Opening Thru Ball: 1-1/2" - 100 PSI - T Handle

V125SL by Banjo | 3-Way Ball Valve | Side Load | 1-1/4" Female NPT | Opening Thru Ball: 1-1/2" | 300 PSI | T Handle | Polypropylene | Pack of 6

Save $65.46 Save $65.46
$447.62
$447.62 - $447.62
$447.62
$382.16
$382.16 - $382.16
$382.16

Banjo Valves
Bolted Ball Valves - 3-Way Ball Valves - Side Load - Polypropylene - 4 Bolt Valves

Package Quantity: 6 Units

Specifications for Variant SKU: V125SL Banjo | 6 |
Shape (Orientation): Tee
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • SIDE LOAD: Directional flow, right or left. Valve cannot be turned off.
  • Stainless steel bolts
  • Precision molded in polypropylene. Polypropylene is reinforced with fiber glass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bushings and seats
  • FKM (viton type) body seals
Part Number Female NPT x Female NPT x Female NPT Opening
Thru Ball		 Max PSI Handle Type
V075SL 3/4" x 3/4" x 3/4" 1" 200 PSI Straight
V100SL 1" x 1" x 1" 1" 200 PSI Straight
V125SL 1-1/4" x 1-1/4" x 1-1/4" 1-1/2" 300 PSI T
V150SL 1-1/2" x 1-1/2" x 1-1/2" 1-1/2" 225 PSI T
V200SL 2" x 2" x 2" 2" 225 PSI Straight
Replacement Parts for V125SL, V150SL
Item Part Number Description Quantity Required
1 V20344S 1-1/4" Valve Body 1
1 V20354S 1-1/2" Valve Body 1
2 V20267 1-1/4" End Plate 2
2 2
3 V20151M Stem 1
4 V20153 Handle-Straight 1
5 V20355S Ball 1
6 VE20258A Seats 2
7 V20060 Thrust Bushing 1
8 V20159 Upper Stem Bushing 1
9 V20163 FKM (viton type) Stem O-Ring 1
10 V20264 FKM (viton type) Body O-Ring 2
