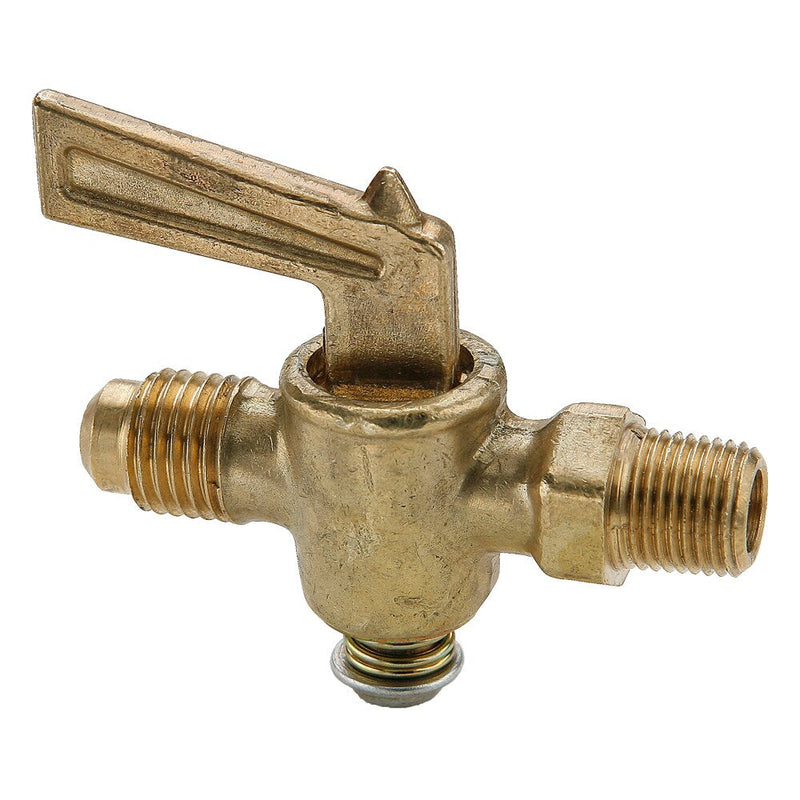

V204F-4-2 by Parker | Ground Plug Shuttoff | 1/4" Flare x 1/8" Male Pipe Thread | Straight | Brass | Pack of 10

Save $197.95

$494.88

$494.88 - $494.88

$494.88

$296.93

$296.93 - $296.93

$296.93

by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff V204F Flare to Male Pipe

Package Quantity: 10 Units

Specifications for Variant SKU: V204F-4-2 Parker \| 10 \|
Series:	V204F Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Valved

Specification:
Product Features:	Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C) V406P/V407P: -40° to +180° F ( -40° to +82.2° C) Drain Cocks: -65° to +250° F (-53.8° to +121.1° C) DCR601: -30° to +250° F (-34.4° to +121.1° C)
Pressure Range:	Ground Plug Shutoff: 30 PSI (2.0 bar) Drain Cocks: Up to 150 PSI (10.3 bar)


Part Number	Tube Size	Pipe Thread	L	M	Flow Diameter (D)
V204F-4-2	1/4"	1/8"	1.85"	2.00"	.188"
V204F-6-4	3/8"	1/4"	1.85"	2.18"	.218"
