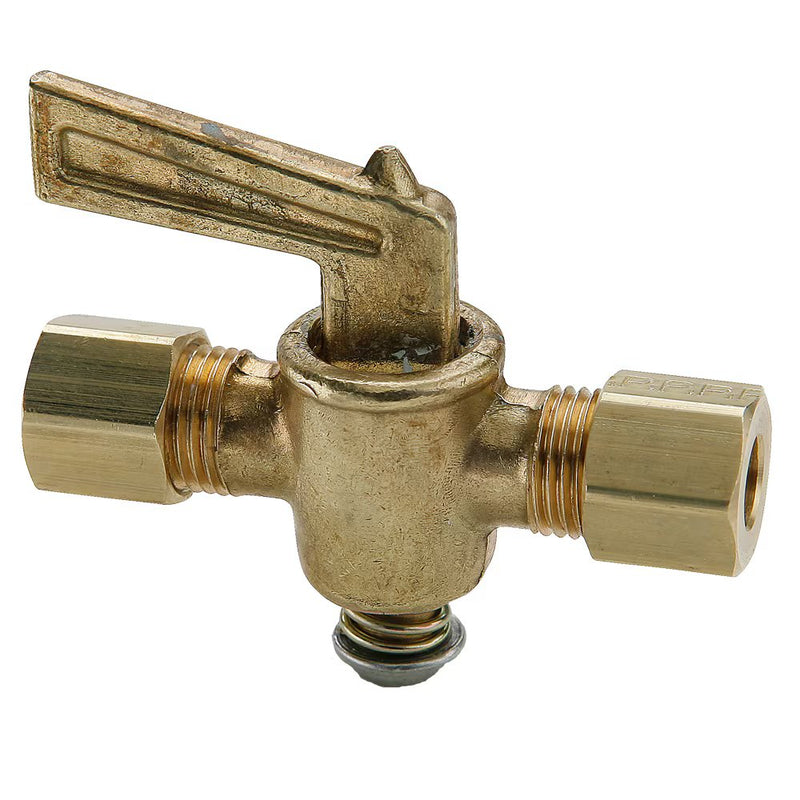

V303C-6-6 by Parker | Ground Plug Shutoff | 3/8" Tube Size Compression x 3/8" Tube Size Compression | Straight | Brass | Pack of 10

Save $281.60

$704.00

$704.00 - $704.00

$704.00

$422.40

$422.40 - $422.40

$422.40

by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff V303C / V303CA Compression to Compression

Package Quantity: 10 Units

Specifications for Variant SKU: V303C-6-6 Parker \| 10 \|
Series:	V303C Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Valved

Specification:
Product Features:	Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C) V406P/V407P: -40° to +180° F ( -40° to +82.2° C) Drain Cocks: -65° to +250° F (-53.8° to +121.1° C) DCR601: -30° to +250° F (-34.4° to +121.1° C)
Pressure Range:	Ground Plug Shutoff: 30 PSI (2.0 bar) Drain Cocks: Up to 150 PSI (10.3 bar)


Part Number	Tube Size	L	M	Flow Diameter (D)
V303C-4-4	1/4"	1.88"	2.33"	.188"
V303CA-4-4	1/4"	1.90"	1.75"	.188"
V303C-6-6	3/8"	2.26"	2.45"	.218"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
