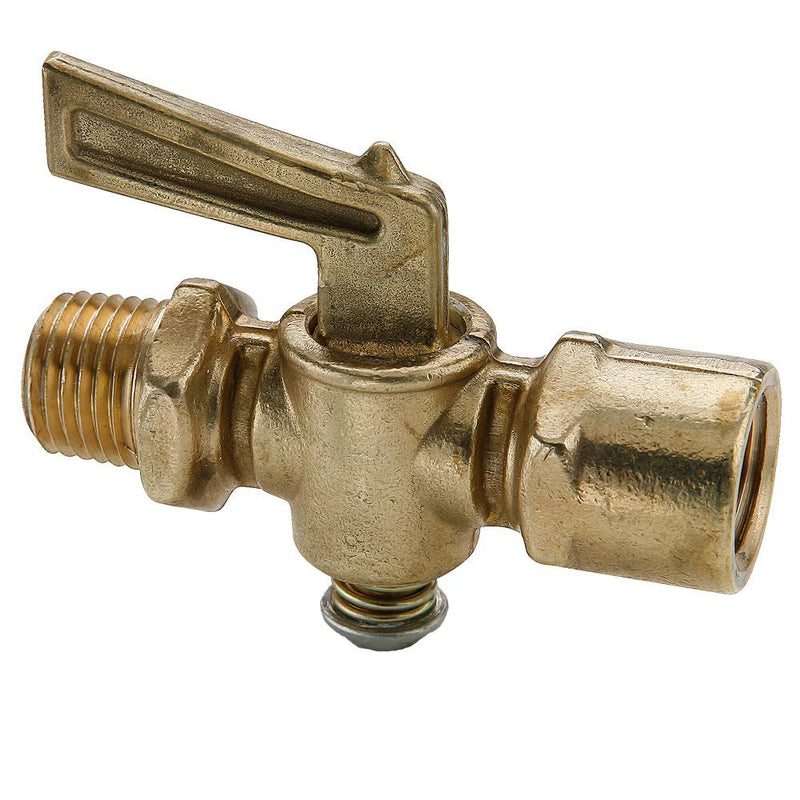

V402P-4-4 by Parker | Ground Plug Shutoff | 1/4" Female Pipe Thread x 1/4" Male Pipe Thread | Straight | Brass | Pack of 25

Save $485.55

$1,213.88

$1,213.88 - $1,213.88

$1,213.88

$728.33

$728.33 - $728.33

$728.33

by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff V402P Female Pipe to Male Pipe

Package Quantity: 25 Units

Specifications for Variant SKU: V402P-4-4 Parker \| 25 \|
Series:	V402P Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Valved

Specification:
Product Features:	Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C) V406P/V407P: -40° to +180° F ( -40° to +82.2° C) Drain Cocks: -65° to +250° F (-53.8° to +121.1° C) DCR601: -30° to +250° F (-34.4° to +121.1° C)
Pressure Range:	Ground Plug Shutoff: 30 PSI (2.0 bar) Drain Cocks: Up to 150 PSI (10.3 bar)


Part Number	Female Pipe Thread	Pipe Thread	L	M	Flow Diameter (D)
V402P-2-2	1/8"	1/8"	1.85"	1.78"	.218"
V402P-4-4	1/4"	1/4"	1.86"	2.26"	.218"
V402P-6-6	3/8"	3/8"	2.34"	2.21"	.245"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
