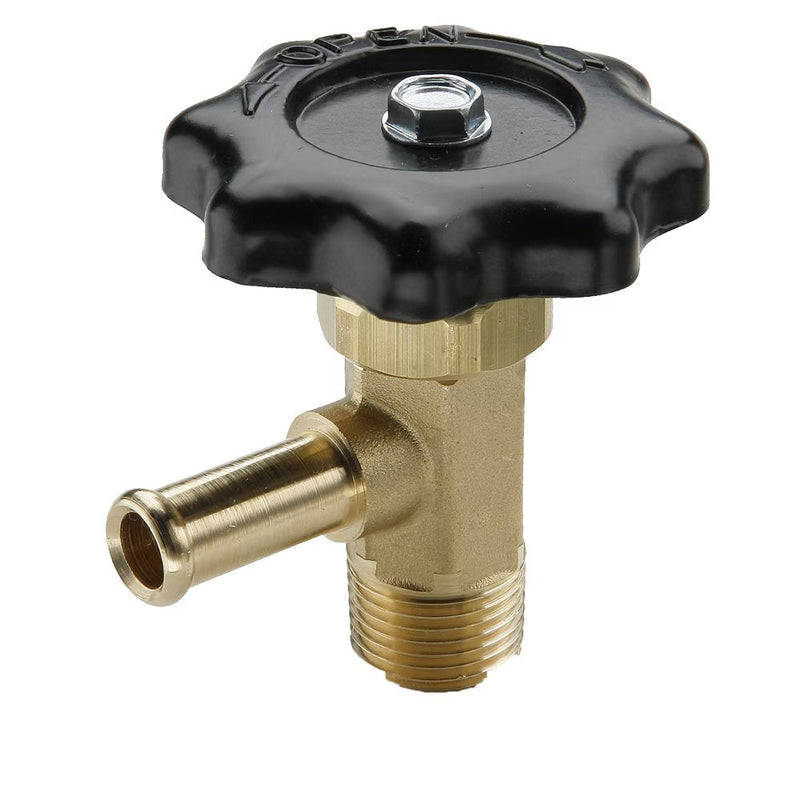

V404P-10-6 by Parker | Truck Valves & Lanyard Valve | 5/8" Hose ID x 3/8" Male Pipe Thread | 2.75" Length | 90° Elbow | Brass | Pack of 5

Save $110.85

$277.12

$277.12 - $277.12

$277.12

$166.27

$166.27 - $166.27

$166.27

by Parker Hannifin
Truck Valves & Lanyard Valve:Truck Valve V404P

Package Quantity: 5 Units

Specifications for Variant SKU: V404P-10-6 Parker \| 5 \|
Series:	V404P Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Valved

Product Features:	Truck Valves Brass Body and Stem Flare, Hose, Tube and Pipe Connections Round and Pin Handles Lanyard Valve Low Temperature Seal All Brass Body Manual Release
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Water Oil Coolant Lines
Truck Valve Specification:
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-30° to +250° F (-34.4° to +121.1° C)
Lanyard Valve Specification:
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)


Part Number	Hose ID	Pipe Thread	Flow	L	M	N
V404P-6-6	3/8"	3/8"	.281"	2.35"	1.36"	.94"
V404P-10-6	5/8"	3/8"	.406"	2.75"	1.31"	1.10"
