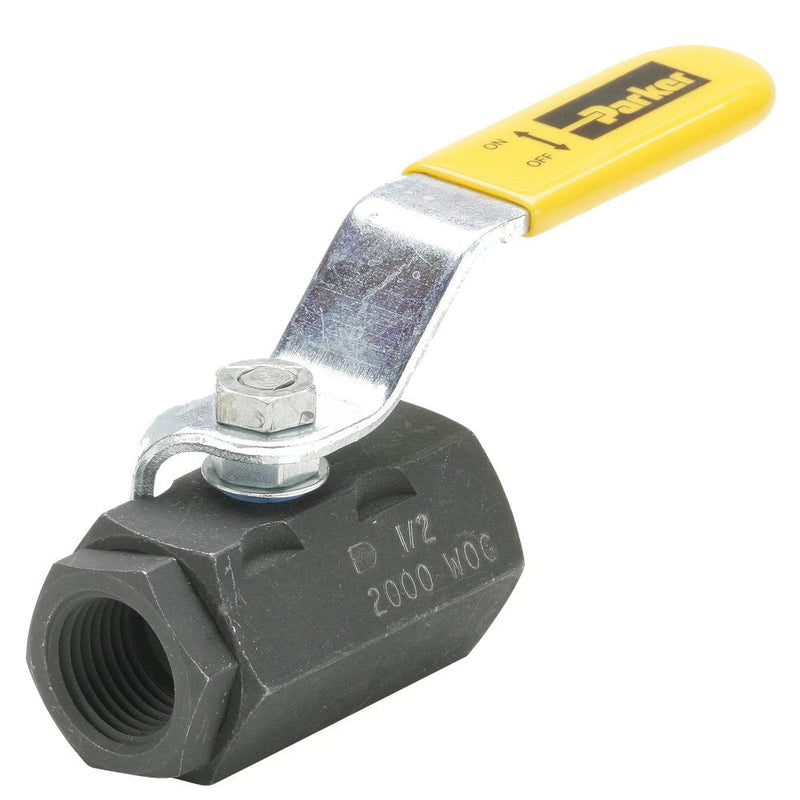

V500CS-4 by Parker | Ball Valves | 1/4" Female Pipe Thread | 1-1/16" Hex (B) | 15/16" Hex (C) | 4.90" Length | Straight | Carbon Steel

V500CS-4 by Parker | Ball Valves | 1/4" Female Pipe Thread | 1-1/16" Hex (B) | 15/16" Hex (C) | 4.90" Length | Straight | Carbon Steel | Pack of 10

Save $193.95 Save $193.95
$484.88
$484.88 - $484.88
$484.88
$290.93
$290.93 - $290.93
$290.93

by Parker Hannifin
Ball Valves Carbon Steel Series 500CS/502CS:Female-Female Pipe Ends V500CS

Package Quantity: 10 Units

Specifications for Variant SKU: V500CS-4 Parker | 10 |
Series: V500CS Series
Shape (Orientation): Straight
Material(s): Carbon Steel, Steel
Seal Material(s): PTFE
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 500-Female/Female
  • 502-Female/Female
Material:
  • CS-Carbon Steel
Specification:
Temperature Range: -20° to +425° F (-28.8° to +218.3° C)
Pressure Range:
  • 1/4” – 1”: 2000 PSI (137.8 bar)
  • 1 1/4” – 2”: 1500 PSI (103.4 bar)
  • Saturated Steam up to 150 PSI (10.3 bar)
Part Number Pipe Thread Hex (B) Hex (C) H L M N Flow Diameter (D)
V500CS-4 1/4" 1-1/16" 15/16" 3.78" 1.00" 2.00" 1.63" .400"
V500CS-6 3/8" 1-1/16" 15/16" 3.78" 1.00" 2.00" 1.63" .400"
V500CS-8 1/2" 1-1/4" 1-1/16" 3.78" 1.25" 2.37" 1.73" .540"
V500CS-12 3/4" 1-5/8" 1-3/8" 5.10" 1.50" 2.90" 2.08" .680"
V500CS-16 1" 2" 1-5/8" 5.10" 1.76" 3.41" 2.30" .880"
