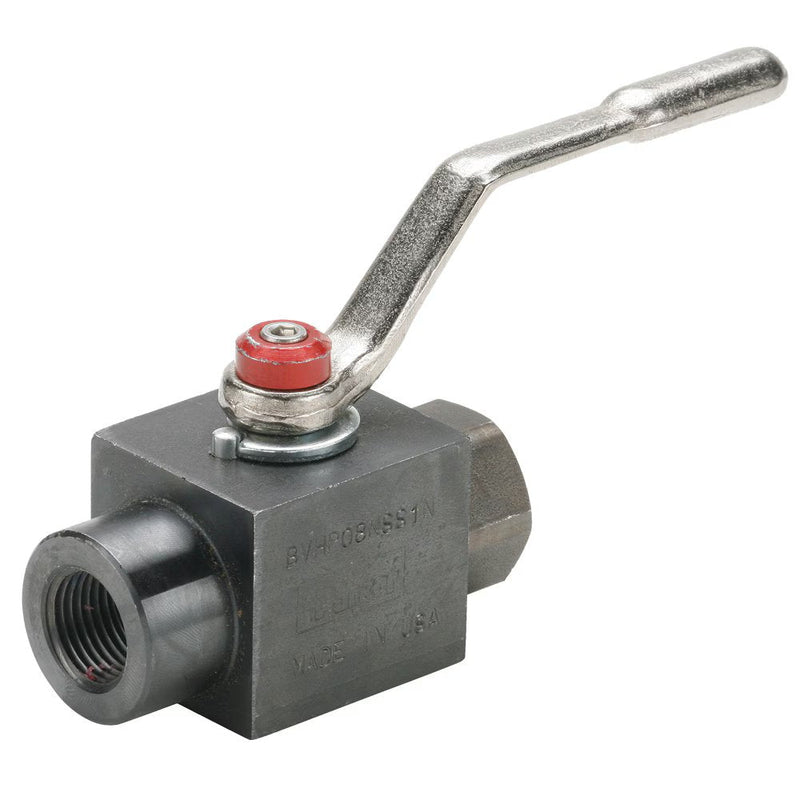

V500HP-8 by Parker | Ball Valve | 1/2" Female NPT Thread | 6.24" Length | Straight | Carbon Steel

Save $3.44

$94.63

$94.63 - $94.63

$94.63

$91.19

$91.19 - $91.19

$91.19

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:7,250 PSI Female-Female Pipe Ends V500HP

Quantity

Specifications for Variant SKU: V500HP-8 Parker
Series:	V500HP Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Delrin, Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Coated, Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball Delrin with Molybdenum Disulphide Seats Nitrile O-rings Stem Seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female NPT Ports 506-Female/Female SAE Straight Thread Ports
Material:	HP-High Pressure Carbon Steel
Temperature Range:	-10° to +210° F (-23.3° to 98.8° C)
Pressure Range:	6000 PSI (413.6 bar)* (Dependent on size) 7250 PSI (9.9 bar) (*Dependent on size)


Part Number	Pipe Thread (NPT)	B	C	H	L	M	N	Flow Diameter (D)
V500HP-4	1/4"-18	.57"	1.30"	4.61"	1.57"	2.72"	3.22"	.240"
V500HP-6	3/8"-18	.57"	1.50"	4.61"	1.70"	2.83"	3.42"	.390"
V500HP-8	1/2"-14	.68"	1.57"	4.61"	1.89"	3.25"	3.50"	.510"
V500HP-16	1"-11.5	.76"	2.76"	6.73"	2.92"	4.45"	5.45"	.980"
