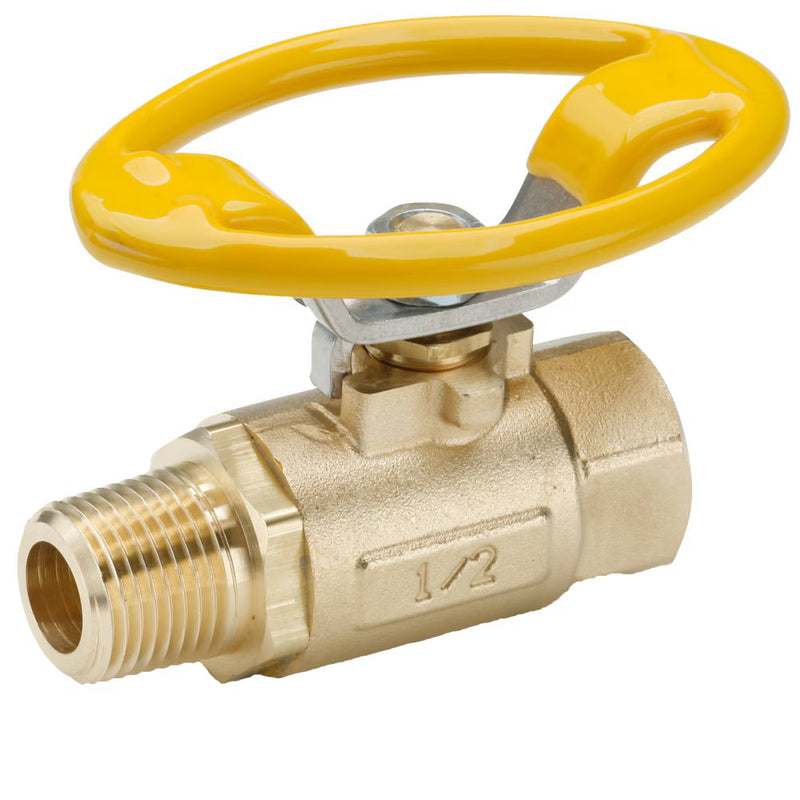

V501P-8-21 by Parker | Ball Valves | 1/2" Female PTF Pipe Thread x 1/2" Male NPTF Pipe Thread | 1-1/16" Hex (B) | 1-1/16" Hex (C) | 3.49" Length | Straight | Brass

V501P-8-21 by Parker | Ball Valves | 1/2" Female PTF Pipe Thread x 1/2" Male NPTF Pipe Thread | 1-1/16" Hex (B) | 1-1/16" Hex (C) | 3.49" Length | Straight | Brass

Save $28.73 Save $28.73
$71.82
$71.82 - $71.82
$71.82
$43.09
$43.09 - $43.09
$43.09

by Parker Hannifin
Ball Valves Brass Series 501:Oval Handle, Male-Female Pipe Ends V501P-X-21
Specifications for Variant SKU: V501P-8-21 Parker
Series: V501P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
  • VV-Valve, vented
  • VVP-Valve, vented, padlocking handle
Type:
  • 501-Male/Female PTF ports
Material:
  • P-Brass
  • PN-Nickel plated
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
  • Vented up to 250 PSI (17.2 bar)
  • XV501PCHP up to 2000PSI (137.8 bar)
Part Number Female Pipe Thread (PTF) Male Pipe Thread (NPTF) Hex (B) Hex (C) H L M N Flow Diameter (D)
V501P-4-21 1/4" 1/4" 15/16" 15/16" 1.74" 3.49" 2.59" 2.38" .344"
V501P-6-21 3/8" 3/8" 15/16" 15/16" 1.74" 3.49" 2.59" 2.38" .375"
V501P-8-21 1/2"* 1/2"* 1-1/16" 1-1/16" 1.74" 3.49" 2.95" 2.49" .500"
V501P-12-21 3/4"** 3/4"* 1-1/4" 1-5/16" 1.74" 3.48" 3.00" 2.71" .685"
V501P-16-21 1"** 1"* 1-1/2" 1-9/16" 1.74" 3.48" 3.60" 2.99" .875"

*PTF Special Short. **PTF SPL Extra Short
