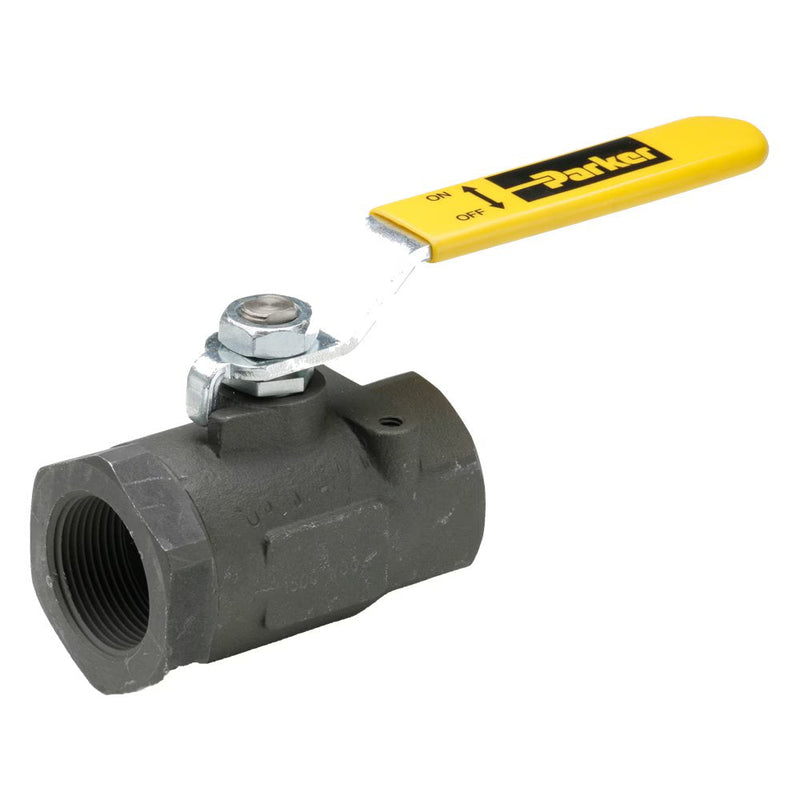

V502CS-32 by Parker | Ball Valves | 2" Female Pipe Thread | 2-3/4" Hex (B) | 3" (C) | 10.02" Length | Straight | Carbon Steel

Save $7.21

$198.32

$198.32 - $198.32

$198.32

$191.11

$191.11 - $191.11

$191.11

by Parker Hannifin
Ball Valves Carbon Steel Series 500CS/502CS:Female-Female Pipe Ends, Panel Mount V502CS

Quantity

Specifications for Variant SKU: V502CS-32 Parker
Series:	V502CS Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Steel
Seal Material(s):	PTFE

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball PTFE seats/seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female 502-Female/Female
Material:	CS-Carbon Steel
Temperature Range:	-20° to +425° F (-28.8° to +218.3° C)
Pressure Range:	1/4” – 1”: 2000 PSI (137.8 bar) 1 1/4” – 2”: 1500 PSI (103.4 bar) Saturated Steam up to 150 PSI (10.3 bar)


Part Number	Pipe Thread	Hex (B)	Hex (C)	F	G	H	L	M	N	Flow Diameter (D)
V502CS-20	1-1/4"	2"	2-1/4"	.94"	1.50"	6.10"	1.87"	3.80"	2.76"	1.000"
V502CS-24	1-1/2"	2-5/16"	2-1/2"	.94"	1.50"	6.10"	2.27"	4.55"	2.98"	1.250"
V502CS-32	2"	2-3/4"	3"	1.03"	2.00"	8.60"	2.42"	4.83"	3.54"	1.500"
