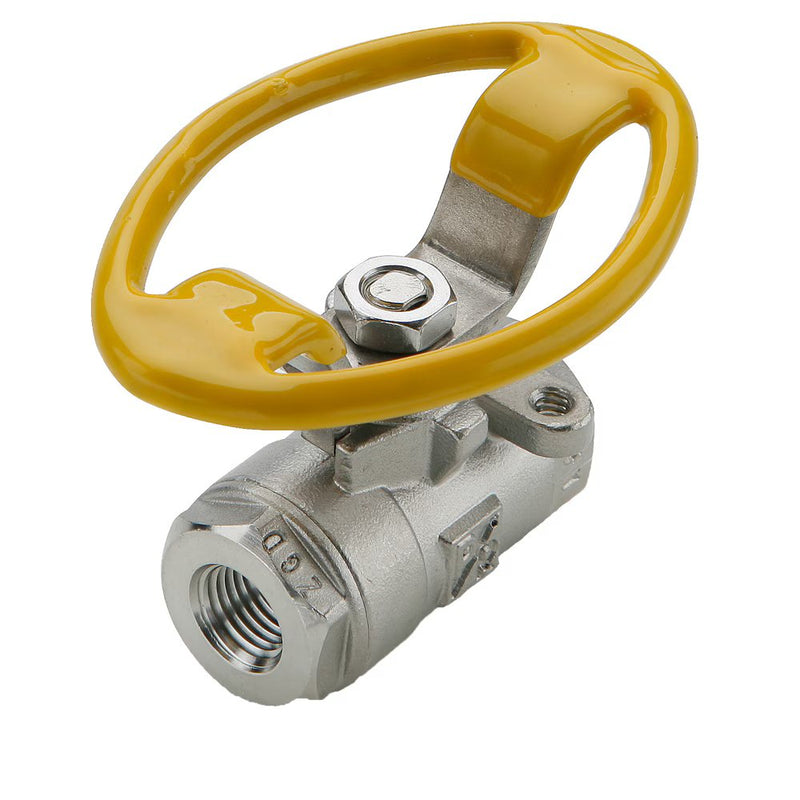

V502SS-16-21 by Parker | Ball Valve | 1" Female NPT Thread | 1-5/8" Hex (B/C) | 5.36" Length | Straight | Stainless Steel

V502SS-16-21 by Parker | Ball Valve | 1" Female NPT Thread | 1-5/8" Hex (B/C) | 5.36" Length | Straight | Stainless Steel

Save $1.68 Save $1.68
$185.23
$185.23 - $185.23
$185.23
$183.55
$183.55 - $183.55
$183.55

by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Oval Handle, Female Pipe Ends, Panel Mount V502SS-X-21
Specifications for Variant SKU: V502SS-16-21 Parker
Series: V502SS Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): PTFE
Special Properties: Silicone Free, Valved
Product Features:
  • CF-8M Stainless Steel body
  • Stainless Steel ball
  • PTFE Seats/Seals
  • Stainless Steel handle
  • Silicone Free
Style:
  • V-Valve
  • VP-Valve, Padlocking
Type:
  • 502-Panel Mount Female/Female NPT Ports
Material:
  • SS – Stainless Steel
Options:
  • 20-Short Handle
  • 21-Oval Handle
  • 35-Welded Retainer Nut
Specification:
Temperature Range: 0° to +400° F (-17.7° to +204.4° C)
Pressure Range:
  • 1/4” – 1”: 2000 PSI (137.8 bar)
  • 1 1/4” – 2”: 1500 PSI (103.4 bar)
  • Vacuum service 28 inches Hg
Approvals: Meets material requirements of NACE MR-01-75
Part Number Pipe Thread (NPT) Hex (B / C) G H L Thread (I) M N Flow Diameter (D) Hole Diameter
V502SS-4-21 1/4" 15/16" 1.125" 1.74" 3.48" 10-24 UNC 2.07" 2.43" .380" 1.125"
V502SS-6-21 3/8" 15/16" 1.125" 1.74" 3.48" 10-24 UNC 2.07" 2.43" .380" 1.125"
V502SS-8-21 1/2" 1-1/16" 1.125" 1.74" 3.48" 10-24 UNC 2.27" 2.54" .500" 1.125"
V502SS-12-21 3/4" 1-3/8" 1.375" 2.68" 5.36" 10-24 UNC 3.35" 3.45" .790" 1.500"
V502SS-16-21 1" 1-5/8" 1.375" 2.68" 5.36" 10-24 UNC 3.54" 3.74" 1.000" 1.500"
