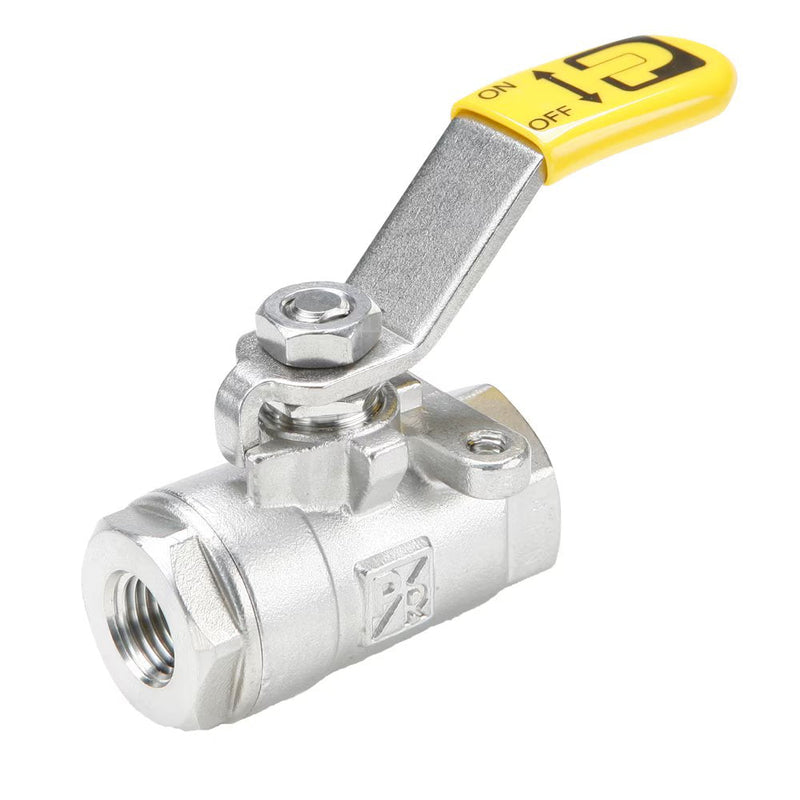

V502SS-6-20 by Parker | Ball Valve | 3/8" Female NPT Thread | 15/16" Hex (B/C) | 3.32" Length | Straight | Stainless Steel

Save $15.91

$108.04

$108.04 - $108.04

$108.04

$92.13

$92.13 - $92.13

$92.13

by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Short Handle, Female Pipe Ends, Panel Mount V502SS-X-20

Specifications for Variant SKU: V502SS-6-20 Parker
Series:	V502SS Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Valved

Specification:
Product Features:	CF-8M Stainless Steel body Stainless Steel ball PTFE Seats/Seals Stainless Steel handle Silicone Free
Style:	V-Valve VP-Valve, Padlocking
Type:	502-Panel Mount Female/Female NPT Ports
Material:	SS – Stainless Steel
Options:	20-Short Handle 21-Oval Handle 35-Welded Retainer Nut
Temperature Range:	0° to +400° F (-17.7° to +204.4° C)
Pressure Range:	1/4” – 1”: 2000 PSI (137.8 bar) 1 1/4” – 2”: 1500 PSI (103.4 bar) Vacuum service 28 inches Hg
Approvals:	Meets material requirements of NACE MR-01-75


Part Number	Pipe Thread (NPT)	Hex (B / C)	G	H	L	M	N	Flow Diameter (D)
V502SS-4-20	1/4"	15/16"	1.12"	2.28"	3.32"	2.07"	2.53"	.375"
V502SS-6-20	3/8"	15/16"	1.12"	2.28"	3.32"	2.07"	2.53"	.375"
V502SS-8-20	1/4"	1-1/16"	1.12"	2.22"	3.37"	2.25"	2.63"	.500"
