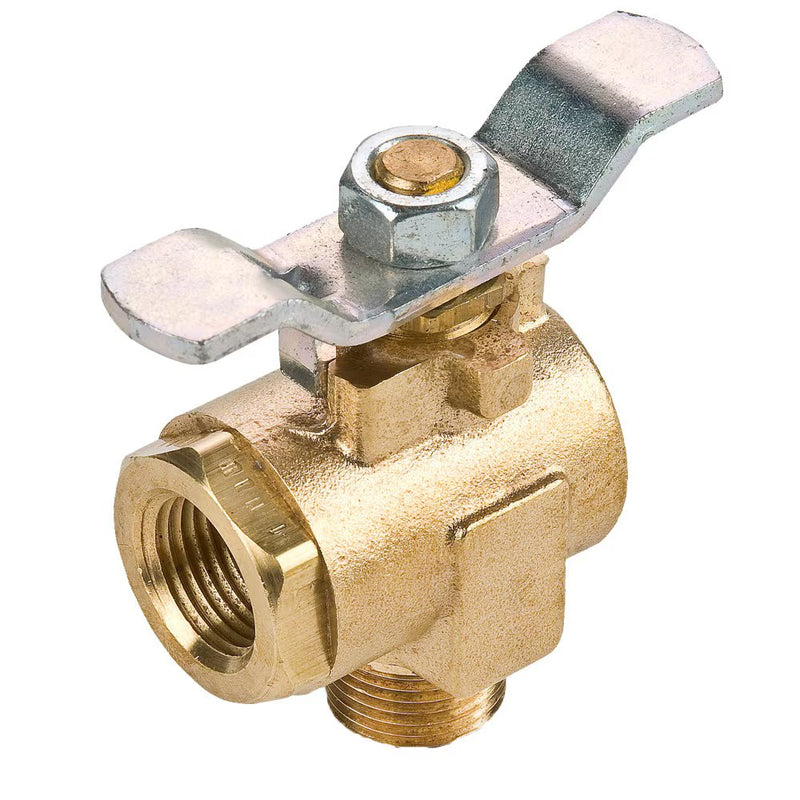

V590P-16 by Parker | Ball Valves | 1" Male-Female PTF Pipe Thread | 1-9/16" Hex | 3.67" Length | 90° Elbow | Brass

Save $51.18

$127.95

$127.95 - $127.95

$127.95

$76.77

$76.77 - $76.77

$76.77

by Parker Hannifin
Ball Valves Brass Series 590/591:90° Flow, Male-Female Pipe Ends V590P

Specifications for Variant SKU: V590P-16 Parker
Series:	V590P Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Steel handle
Style:	V-Valve
Type:	590-Male/Female 591-Male/Female
Material:	P-Brass
Options:	04-Lever Handle 08-Unmarked yellow vinyl handle cover
Temperature Range:	-50° to +350° F (-45.5° to +176.6° C)
Pressure Range:	250 PSI (17.2 bar) Saturated Steam up to 150 PSI (10.3 bar) Vacuum Service to 29 Inches Hg


Part Number	Straight PTF Thread	Hex	H	K	L	M	N	Flow Diameter (D)
V590P-4	1/4"	15/16"	1.25"	1.08"	2.50"	1.00"	2.42"	.375"
V590P-6	3/8"	15/16"	1.25"	1.09"	2.50"	1.00"	2.43"	.375"
V590P-8	1/2"	1-1/16"	1.25"	1.30"	2.50"	1.08"	2.67"	.500"
V590P-16	1"	1-9/16"	1.30"	1.90"	2.60"	1.38"	3.62"	.750"
