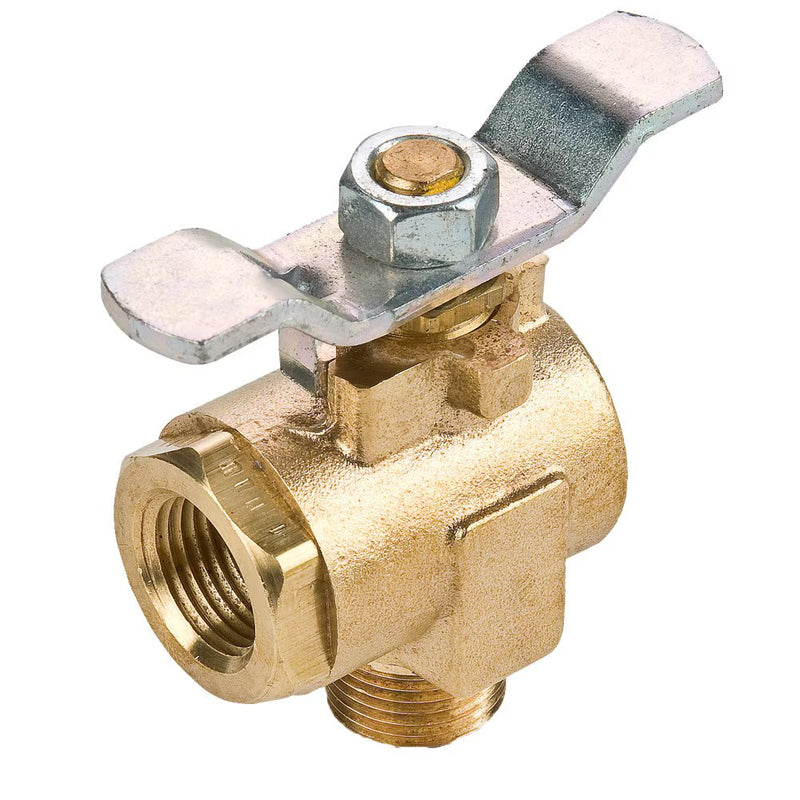

V590P-4 by Parker | Ball Valves | 1/4" Male-Female PTF Pipe Thread | 15/16" Hex | 2.42" Length | 90° Elbow | Brass

Save $17.62

$44.05

$44.05 - $44.05

$44.05

$26.43

$26.43 - $26.43

$26.43

by Parker Hannifin
Ball Valves Brass Series 590/591:90° Flow, Male-Female Pipe Ends V590P

Specifications for Variant SKU: V590P-4 Parker
Series:	V590P Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Steel handle
Style:	V-Valve
Type:	590-Male/Female 591-Male/Female
Material:	P-Brass
Options:	04-Lever Handle 08-Unmarked yellow vinyl handle cover
Temperature Range:	-50° to +350° F (-45.5° to +176.6° C)
Pressure Range:	250 PSI (17.2 bar) Saturated Steam up to 150 PSI (10.3 bar) Vacuum Service to 29 Inches Hg


Part Number	Straight PTF Thread	Hex	H	K	L	M	N	Flow Diameter (D)
V590P-4	1/4"	15/16"	1.25"	1.08"	2.50"	1.00"	2.42"	.375"
V590P-6	3/8"	15/16"	1.25"	1.09"	2.50"	1.00"	2.43"	.375"
V590P-8	1/2"	1-1/16"	1.25"	1.30"	2.50"	1.08"	2.67"	.500"
V590P-16	1"	1-9/16"	1.30"	1.90"	2.60"	1.38"	3.62"	.750"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
