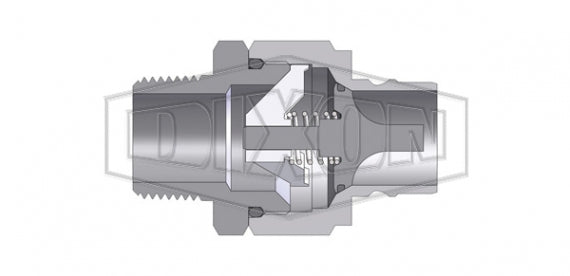

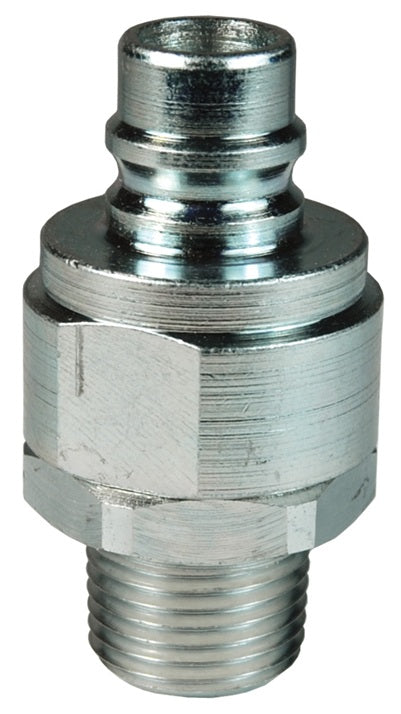

V6M6 by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 3/4" Male NPTF x 3/4" MIL-C-51234 Valved | Plug | Steel

Save $2.42

$28.59

$28.59 - $28.59

$28.59

$26.17

$26.17 - $26.17

$26.17

Dixon Valve & Coupling
Hydraulic Coupling: V-Series MIL-C-51234 Valved Plug (Male Threads)

General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications.

Quantity

Specifications for Variant SKU: V6M6 Dixon
Series:	V-Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male V-Series QD Interchange, 3/4in Male NPTF
Material(s):	Steel

Compatibility & Interchange:	Interchangeable to MIL-C-51234 Interchangeable with Snap-Tite H/IH Series and Faster TNV
Construction:	Steel nipples are machined from high-strength steel and induction hardened. Machined components are manufactured using solid bar stock.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Rated Pressure Chart \| V-Series MIL-C-51234 (Valved Connected)
Body Size	Steel Coupler/Plug				Brass Coupler/Plug				316 Stainless Coupler/Plug
Body Size	Maximum Working		Burst		Maximum Working		Burst		Maximum Working		Burst
1/4"	6,500 PSI	450 bar	12,700 PSI	876 bar	2,250 PSI	150 bar	5,000 PSI	345 bar	5,000 PSI	345 bar	10,000 PSI	700 bar
3/8"	4,500 PSI	310 bar	10,500 PSI	700 bar	2,250 PSI	150 bar	5,300 PSI	350 bar	4,000 PSI	275 bar	8,000 PSI	550 bar
1/2"	4,000 PSI	275 bar	9,600 PSI	650 bar	2,000 PSI	130 bar	5,700 PSI	390 bar	3,750 PSI	260 bar	7,500 PSI	500 bar
3/4"	3,500 PSI	240 bar	9,100 PSI	600 bar	2,000 PSI	130 bar	5,300 PSI	350 bar	2,000 PSI	130 bar	7,500 PSI	500 bar
1"	2,000 PSI	130 bar	9,500 PSI	650 bar	1,750 PSI	120 bar	5,000 PSI	345 bar	2,000 PSI	130 bar	5,000 PSI	345 bar
1-1/4"	1,750 PSI	120 bar	5,000 PSI	345 bar	350 PSI	24 bar	1,000 PSI	70 bar	1,500 PSI	100 bar	3,000 PSI	200 bar
1-1/2"	1,500 PSI	100 bar	5,000 PSI	345 bar	350 PSI	24 bar	1,200 PSI	80 bar	1,500 PSI	100 bar	3,000 PSI	200 bar
2"	1,500 PSI	100 bar	4,000 PSI	275 bar	400 PSI	28 bar	1,000 PSI	70 bar	500 PSI	34 bar	1,000 PSI	70 bar

Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.

V-Series \| MIL-C-51234 Valved Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
V2M1	Plug/Male	1/4"	1/8" - 27 Male NPTF	Steel	2.06" (52.3mm)	0.97" (24.6mm)	7/8"
V2M2	Plug/Male	1/4"	1/4" - 18 Male NPTF	Steel	2.06" (52.3mm)	0.97" (24.6mm)	7/8"
V2M2-B	Plug/Male	1/4"	1/4" - 18 Male NPTF	Brass	2.06" (52.3mm)	0.97" (24.6mm)	7/8"
V2M2-SS	Plug/Male	1/4"	1/4" - 18 Male NPTF	316 Stainless	2.06" (52.3mm)	0.97" (24.6mm)	7/8"
V3M3	Plug/Male	3/8"	3/8" - 18 Male NPTF	Steel	2.25" (57.2mm)	1.10" (27.9mm)	1"
V3M3-B	Plug/Male	3/8"	3/8" - 18 Male NPTF	Brass	2.25" (57.2mm)	1.10" (27.9mm)	1"
V3M3-SS	Plug/Male	3/8"	3/8" - 18 Male NPTF	316 Stainless	2.25" (57.2mm)	1.10" (27.9mm)	1"
V4M4	Plug/Male	1/2"	1/2" - 14 Male NPTF	Steel	2.40" (61.0mm)	1.31" (33.3mm)	1-3/16"
V4M4-B	Plug/Male	1/2"	1/2" - 14 Male NPTF	Brass	2.40" (61.0mm)	1.31" (33.3mm)	1-3/16"
V4M4-SS	Plug/Male	1/2"	1/2" - 14 Male NPTF	316 Stainless	2.40" (61.0mm)	1.31" (33.3mm)	1-3/16"
V6M6	Plug/Male	3/4"	3/4" - 14 Male NPTF	Steel	2.91" (73.9mm)	1.65" (41.9mm)	1-1/2"
V6M6-B	Plug/Male	3/4"	3/4" - 14 Male NPTF	Brass	2.91" (73.9mm)	1.65" (41.9mm)	1-1/2"
V6M6-SS	Plug/Male	3/4"	3/4" - 14 Male NPTF	316 Stainless	2.91" (73.9mm)	1.65" (41.9mm)	1-1/2"
V8M8	Plug/Male	1"	1" - 11-1/2 Male NPTF	Steel	3.22" (81.8mm)	2.06" (52.3mm)	1-7/8"
V8M8-B	Plug/Male	1"	1" - 11-1/2 Male NPTF	Brass	3.22" (81.8mm)	2.06" (52.3mm)	1-7/8"
V8M8-SS	Plug/Male	1"	1" - 11-1/2 Male NPTF	316 Stainless	3.22" (81.8mm)	2.06" (52.3mm)	1-7/8"
V10M10	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Male NPTF	Steel	3.46" (87.9mm)	2.19" (55.6mm)	2"
V10M10-B	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Male NPTF	Brass	3.46" (87.9mm)	2.19" (55.6mm)	2"
V10M10-SS	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Male NPTF	316 Stainless	3.46" (87.9mm)	2.19" (55.6mm)	2"
V12M12	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Male NPTF	Steel	3.85" (97.8mm)	2.74" (69.6mm)	2-1/2"
V12M12-B	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Male NPTF	Brass	3.85" (97.8mm)	2.74" (69.6mm)	2-1/2"
V12M12-SS	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Male NPTF	316 Stainless	3.85" (97.8mm)	2.74" (69.6mm)	2-1/2"
V16M16	Plug/Male	2"	2" - 11-1/2 Male NPTF	Steel	4.34" (110.2mm)	3.83" (97.3mm)	3-1/2"
V16M16-B	Plug/Male	2"	2" - 11-1/2 Male NPTF	Brass	4.34" (110.2mm)	3.83" (97.3mm)	3-1/2"
V16M16-SS	Plug/Male	2"	2" - 11-1/2 Male NPTF	316 Stainless	4.34" (110.2mm)	3.83" (97.3mm)	3-1/2"

V-Series \| MIL-C-51234 Valved Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
2VM1	Socket/Female	1/4"	1/8" - 27 Male NPTF	Steel	2.12" (53.8mm)	0.99" (25.1mm)	7/8"
2VM2	Socket/Female	1/4"	1/4" - 18 Male NPTF	Steel	2.12" (53.8mm)	0.99" (25.1mm)	7/8"
2VM2-B	Socket/Female	1/4"	1/4" - 18 Male NPTF	Brass	2.12" (53.8mm)	0.99" (25.1mm)	7/8"
2VM2-SS	Socket/Female	1/4"	1/4" - 18 Male NPTF	316 Stainless	2.12" (53.8mm)	0.99" (25.1mm)	7/8"
3VM3	Socket/Female	3/8"	3/8" - 18 Male NPTF	Steel	2.32" (58.9mm)	1.18" (30.0mm)	1"
3VM3-B	Socket/Female	3/8"	3/8" - 18 Male NPTF	Brass	2.32" (58.9mm)	1.18" (30.0mm)	1"
3VM3-SS	Socket/Female	3/8"	3/8" - 18 Male NPTF	316 Stainless	2.32" (58.9mm)	1.18" (30.0mm)	1"
4VM4	Socket/Female	1/2"	1/2" - 14 Male NPTF	Steel	2.54" (64.5mm)	1.36" (34.5mm)	1-3/16"
4VM4-B	Socket/Female	1/2"	1/2" - 14 Male NPTF	Brass	2.54" (64.5mm)	1.36" (34.5mm)	1-3/16"
4VM4-SS	Socket/Female	1/2"	1/2" - 14 Male NPTF	316 Stainless	2.54" (64.5mm)	1.36" (34.5mm)	1-3/16"
6VM6	Socket/Female	3/4"	3/4" - 14 Male NPTF	Steel	3.07" (78.0mm)	1.67" (42.4mm)	1-1/2"
6VM6-B	Socket/Female	3/4"	3/4" - 14 Male NPTF	Brass	3.07" (78.0mm)	1.67" (42.4mm)	1-1/2"
6VM6-SS	Socket/Female	3/4"	3/4" - 14 Male NPTF	316 Stainless	3.07" (78.0mm)	1.67" (42.4mm)	1-1/2"
8VM8	Socket/Female	1"	1" - 11-1/2 Male NPTF	Steel	3.32" (84.3mm)	2.06" (52.3mm)	1-7/8"
8VM8-B	Socket/Female	1"	1" - 11-1/2 Male NPTF	Brass	3.32" (84.3mm)	2.06" (52.3mm)	1-7/8"
8VM8-SS	Socket/Female	1"	1" - 11-1/2 Male NPTF	316 Stainless	3.32" (84.3mm)	2.06" (52.3mm)	1-7/8"
10VM10	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Male NPTF	Steel	3.59" (91.2mm)	2.19" (55.6mm)	2"
10VM10-B	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Male NPTF	Brass	3.59" (91.2mm)	2.19" (55.6mm)	2"
10VM10-SS	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Male NPTF	316 Stainless	3.59" (91.2mm)	2.19" (55.6mm)	2"
12VM12	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Male NPTF	Steel	4.01" (101.9mm)	2.74" (69.6mm)	2-1/2"
12VM12-B	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Male NPTF	Brass	4.01" (101.9mm)	2.74" (69.6mm)	2-1/2"
12VM12-SS	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Male NPTF	316 Stainless	4.01" (101.9mm)	2.74" (69.6mm)	2-1/2"
16VM16	Socket/Female	2"	2" - 11-1/2 Male NPTF	Steel	4.54" (115.3mm)	3.83" (97.3mm)	3-1/2"
16VM16-B	Socket/Female	2"	2" - 11-1/2 Male NPTF	Brass	4.54" (115.3mm)	3.83" (97.3mm)	3-1/2"
16VM16-SS	Socket/Female	2"	2" - 11-1/2 Male NPTF	316 Stainless	4.54" (115.3mm)	3.83" (97.3mm)	3-1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
