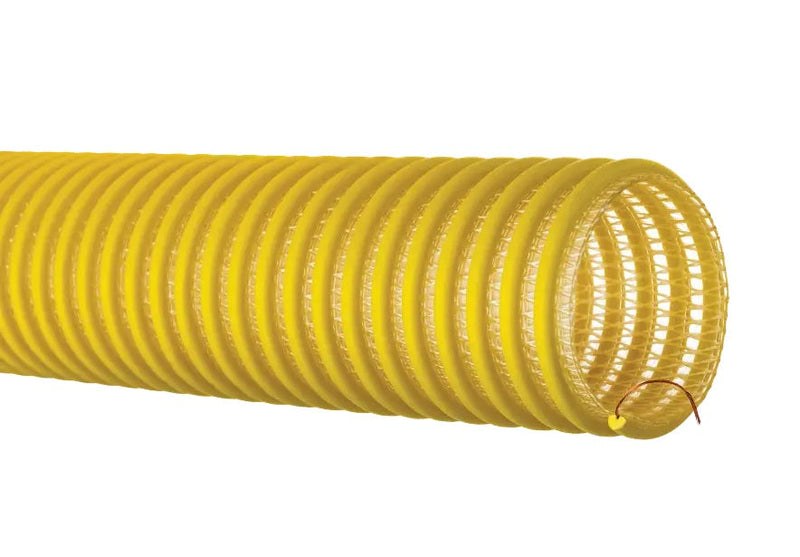

VAPR404X60 Tigerflex® VAPORFLEX™ by Kuriyama | VAPR™ Series | Heavy Duty Reinforced Vapor Recovery Hose | Polyurethane (TPU) | 4.04" ID | 4.77" OD | 60ft Length

VAPR404X60 Tigerflex® VAPORFLEX™ by Kuriyama | VAPR™ Series | Heavy Duty Reinforced Vapor Recovery Hose | Polyurethane (TPU) | 4.04" ID | 4.77" OD | 60ft Length

$0.00 - $0.00
$0.00
$1,425.60
$1,425.60 - $1,425.60
$1,425.60
p>Kuriyama of America Inc.
Tigerflex® | VAPORFLEX™ VAPR™ Series | Heavy Duty Reinforced Vapor Recovery Hose | Polyurethane (TPU)

Designed for vapor recovery during terminal loading and fuel delivery..

Biofuel Compatible.

Made in the USA.


Package Quantity: 60 Foot

Specifications for Variant SKU: VAPR404X60 Kuriyama | 60 |
Brand: VAPORFLEX, Tigerflex
Series: VAPR Series
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 4.04in
Outer Diameter: 4.77in
Tubing Construction: TPU
Special Properties: Outer Helix Protection, Ground Wire in Hose
TPU Vapor Recovery Hose

Vapor Recovery Hose

A lightweight, transparent polyurethane (TPU) hose built for fuel-vapor recovery at loading terminals and during delivery. Polyester reinforcement, a rigid PVC helix, and an embedded grounding wire deliver drop-hose durability with static protection, while staying flexible in subzero temperatures.

◎

Transparent

See if fuel backs up into the system

⚡

Grounding Wire

Multi-strand wire dissipates static electricity

❄

Cold-Flex™

Stays flexible in subzero temperatures

✓

Biofuel Compatible

Gasoline, ethanol, diesel & biodiesel vapors

1

What is this product used for?
  • Vapor recovery during terminal loading
  • Vapor recovery for fuel delivery
2

What are the key specifications?
Tube

Polyurethane (TPU)

Reinforcement

Polyester fabric, rigid PVC helix, embedded grounding wire

Service Temperature

-40°F to +140°F (-40°C to +60°C) — application dependent

Biofuel Standards

Meets ASTM D5798, D4806, or D6751 criteria

3

What are the main product features?
  • Durable Reinforced Construction — Polyester reinforcement resists tearing from pulling or hanging; well suited for demanding terminal use.
  • Lightweight — Delivers durability similar to a drop hose in a lighter-weight version.
  • Cold-Flex™ Materials — Hose remains flexible in subzero temperatures.
  • Transparent Construction — Provides visual confirmation if fuel backs up into the vapor recovery system.
  • Grounding Wire — Multi-strand wire helps prevent the build-up of static electricity for added safety.
  • Easy Slide Helix — Rigid helix protects the hose tube from cover wear and slides easily over rough surfaces.
  • Biofuel Compatible — Designed to handle gasoline, ethanol, diesel, and biodiesel vapors (meeting ASTM D5798, D4806, or D6751 criteria).
  • Non-permeable Construction — Won't swell or stiffen like conventional rubber hoses, for longer hose life and lower operating costs.
  • Kuriyama Coupling Compatible — Hose ID is specifically designed for use with Kuriyama Couplings.
  • Made in the USA — Manufactured in the United States.
4

Which sizes or configurations are available?
Part Number ID OD Working Pressure (PSI) Vacuum (in Hg) Min. Bend
Radius (in)		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm 68°F 104°F 68°F 104°F
3" Hose
VAPR303X60 3.03 77.0 3.75 95.3 55 45 Full 28 6 60 1.00
VAPR303X100 3.03 77.0 3.75 95.3 55 45 Full 28 6 100 1.00
4" Hose
VAPR404X60 4.04 102.6 4.77 121.2 55 45 Full 28 8 60 1.65
VAPR404X100 4.04 102.6 4.77 121.2 55 45 Full 28 8 100 1.65
i
OD is measured over the helix. Service life may vary with operating conditions and the material being conveyed.

How is this product sold?

Available in 60 ft and 100 ft lengths in both 3" and 4" sizes.


⚠ CAUTION: Not intended for liquid fuel use. This hose is designed for fuel-vapor recovery only.
