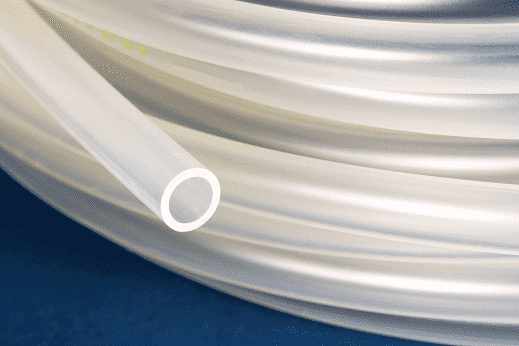

Versilon™ AE300064 Saint Gobain 1" I.D. x 1-3/8" O.D. x 1/8" Wall (Formulation 2001) 50' Package Length - Tubing

  • $500.66
  • (Unit Price: $10.01 per ft.)

SPECIFICATIONS

Application: Chemical Transfer, Perstaltic Pumps, Soap and Detergent Dispensing, Ink Transfer, Water Purification Lines, Food and Beverage, Analytical Instruments, Ideal for Condensers, Incubators, Desiccators, Gas and Drain Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -108 deg. F (-78 deg. C) - 135 deg. F (57 deg. C) (Low Temp. Flexibility: -100 deg. F (-73 deg. C)) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.2600
Literature: Versilon® Tubing - Formulation 2001 (PDF)
Other Features:
  • Plasticizer and oil free - does not contaminate fluids
  • Superior flex life in perstaltic pumps
  • Chemically resistant to a wide range of fluids
  • Clear for easy visual flow monitoring

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
AE300003 1/16" 3/16" 1/16" 1/4" 45 PSI 29.9 in. Hg 50ft
AE300007 1/8" 1/4" 1/16" 1/2" 30 PSI 29.9 in. Hg 50ft
AE300012 3/16" 5/16" 1/16" 1/2" 22 PSI 29.9 in. Hg 50ft
AE300017 1/4" 3/8" 1/16" 1" 17 PSI 29.9 in. Hg 50ft
AE300022 5/16" 7/16" 1/16" 1-1/2" 14 PSI 25.0 in. Hg 50ft
AE300027 3/8" 1/2" 1/16" 2" 12 PSI 15.0 in. Hg 50ft
AE300038 1/2" 3/4" 1/8" 1-1/2" 16 PSI 29.9 in. Hg 50ft
AE300046 5/8" 7/8" 1/8" 2-1/2" 13 PSI 25.0 in. Hg 50ft
AE300053 3/4" 1" 1/8" 3" 11 PSI 15.0 in. Hg 50ft
AE300064 1" 1-3/8" 3/16" 3-3/4" 13 PSI 17.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
