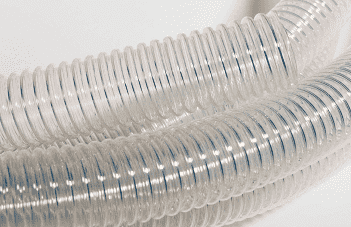

Versilon™ ConvoFlex FXFE6.CONV.16S Saint Gobain 7/8" I.D. x 1" O.D. x .025" Wall 50' Package Length - Convoluted Flexible FEP Tubing

  • $1,149.33
  • (Unit Price: $22.98 per ft.)

SPECIFICATIONS

Application: Biotech, Pharmaceutical, Aerospace, Semiconductor, Chemical Processing SAE Rating: N/A
Other Ratings: N/A Tube: FEP
Reinforcement: N/A Cover: N/A
Temperature Range: N/A Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA Approved Teflon
Literature: Versilon™ Convoflex Convoluted Flexible FEP Tubing (PDF)
Other Features:
  • Flexible convoluted construction
  • Available in FDA-approved Teflon FEP and PFA as well as most other fluoropolymers
  • Read-through transparency
  • Virtually unlimited length capability
  • Continuous flow path - self-flushing
  • Excellent as chemically resistant wire conduit
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Burst Pressure (PSI)* Cv**
FXFE6.CONV.06S 1/4" 3/8" .020" 1/2" 100 PSI 0.31
FXFE6.CONV.08S 3/8" 1/2" .023" 3/4" 70 PSI 0.83
FXFE6.CONV.10S 1/2" 5/8" .025" 1" 60 PSI 1.64
FXFE6.CONV.12S 5/8" 3/4" .025" 1-1/2" 50 PSI 2.78
FXFE6.CONV.14S 3/4" 7/8" .025" 2" 40 PSI 4.56
FXFE6.CONV.16S 7/8" 1" .025" 2-1/2" 38 PSI 8.20
*Each individual application should be evaluated to determine the degree of safety factor to be used with these values. **Based on a long radius sweep. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
