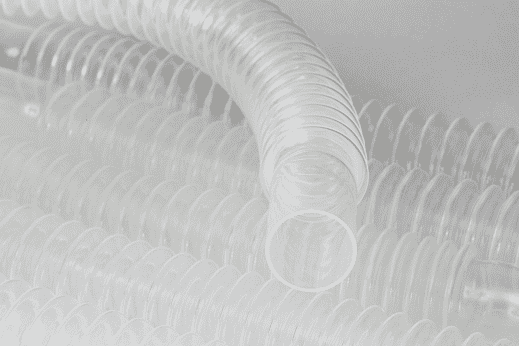

Versilon™ CT-Flex FXFE6.625025 5/8" I.D. x 15/16" O.D. x .025" Wall - FEP Corrugated Tubing

FXFE6.625025 CT-Flex by Versilon™ by Saint Gobain | 5/8" I.D. x 15/16" O.D. x .025" Wall | FEP Corrugated Tubing

Save $0.45 Save $0.45
$6.09
$6.09 - $6.09
$6.09
$5.64
$5.64 - $5.64
$5.64

Saint Gobain - Versilon™ CT-Flex FEP Corrugated Tubing

NOTE: This tubing is sold by the INCH

No by the foot sales. This is a Packaged Length product.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FXFE6.625025 Saint Gobain
Brand: Versilon
Series: CT-Flex
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.625in
Outer Diameter: 0.9375in
Tubing Construction: Corrugated FEP
Applicable Specs & Approvals: Applicable FDA Requirements
Special Properties: Corrugated Tube

SPECIFICATIONS

Application: Electrical, Electronics, Aerospace, Analytical, Military, Semiconductor, Chemical, Automotive, Medical SAE Rating: N/A
Other Ratings: N/A Tube: FEP
Reinforcement: N/A Cover: N/A
Temperature Range: 200 deg. F (93.3 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR 17.1550
Literature: Versilon™ CT-Flex FEP Corrugated Tubing (PDF)
Other Features:
  • Unique chemical, electrical and thermal properties
  • Extension/compression length ratio: approximately 2:1
  • Bend diameter: 1/2 of tubing I.D.
  • Virtually unlimited length capability
  • Maximum Continuous Service Temperature: 200 deg. F (93.3 deg. C)/0 pressure.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Unbraided Burst Pressure at Room Temperature (PSI)*
FXFE6.250015 1/4" 3/8" .017" 1/8" 200 PSI
FXFE6.375020 3/8" 9/16" .020" 3/16" 140 PSI
FXFE6.500025 1/2" 3/4" .025" 1/4" 110 PSI
FXFE6.625025 5/8" 15/16" .025" 5/16" 90 PSI
FXFE6.100035 1" 1-3/8" .035" 1/2" 70 PSI
FXFE6.125035 1-1/4" 1-5/8" .035" 5/8" 50 PSI
FXFE6.150035 1-1/2" 1-13/16" .035" 3/4" 40 PSI
FXFE6.200040 2" 2-5/8" .040" 1" 30 PSI
* ASTM-D2116 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
