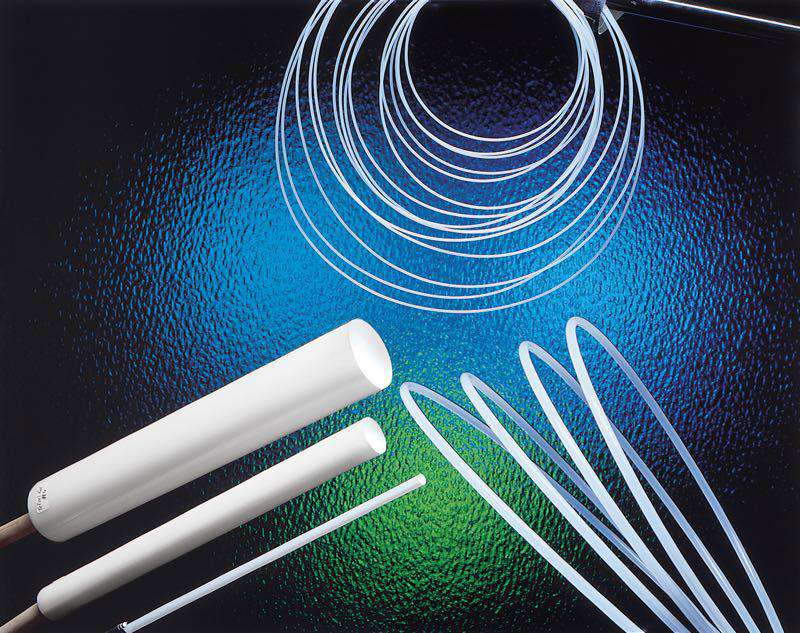

Versilon™ ETFE TSTZ83-0062-021.10 Saint Gobain (.020" I.D. x 1/16" OD x .021" Wall) ETFE Tubing

TSTZ83-0062-021.10 Versilon™ by Saint Gobain | .020" I.D. x 1/16" OD x .021" Wall | ETFE Tubing | Roll of 100 Feet

Save $24.74

$340.74

$340.74 - $340.74

$340.74

$316.00

$316.00 - $316.00

$316.00

Saint Gobain - Versilon™ ETFE Tubing: Radiation Resistant Tubing with Excellent Mechanical Properties.

Versilon™ ETFE tubing offers improved mechanical properties over fluoropolymers such as FEP and PFA and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C).

Due to its mechanical properties, Versilon™ ETFE tubing can be used to manufacture valves, fittings, bearings, pump components and electrical coatings. Versilon™ ETFE tubing is made from materials that meet ASTM standard D3159.

No by the foot sales. This is a Packaged Length product.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: TSTZ83-0062-021.10 Saint Gobain \| 100 \|
Brand:	Versilon
Series:	Versilon ETFE
Hose Color(s):	White/Off-White
Internal Diameter:	0.02in
Outer Diameter:	0.0625in

SPECIFICATIONS

Other Features:
Application:	Bearings, Electrical Coatings, Fittings, Pump Components, Valves	SAE Rating:	N/A
Other Ratings:	Meets ASTM standard D3159	Tube:	ETFE
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	300°F (150°C) to -150°F (-66°C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Literature:	Versilon™ ETFE Tubing (PDF)
Mechanical Strength Abrasion Resistant Broad Temperature Range Good Chemical Resistance Continuous Service Temperature 300°F (148°C) WARNING: Versilon™ ETFE Tubing is not intended as an implant material.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)
TSTZ83-0062-023.10	0.02"	1/16"	0.02"
TSTZ83-0125-031.10	0.016"	1/16"	0.02"
TSTZ83-0125-016.10	3/32"	1/8"	1/64"
TSTZ83-0062-021.10	1/16"	1/8"	1/32"
TSTZ83-0250-031.10	3/16"	1/4"	1/32"
TSTZ83-0312-040.10	1/8"	1/4"	1/16"
TSTZ83-0375-048.10	0.23"	0.31"	0.04"
TSTZ83-0250-062.10	0.28"	0.38"	0.05"
TSTZ83-0500-062.10	3/8"	1/2"	1/16"

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
