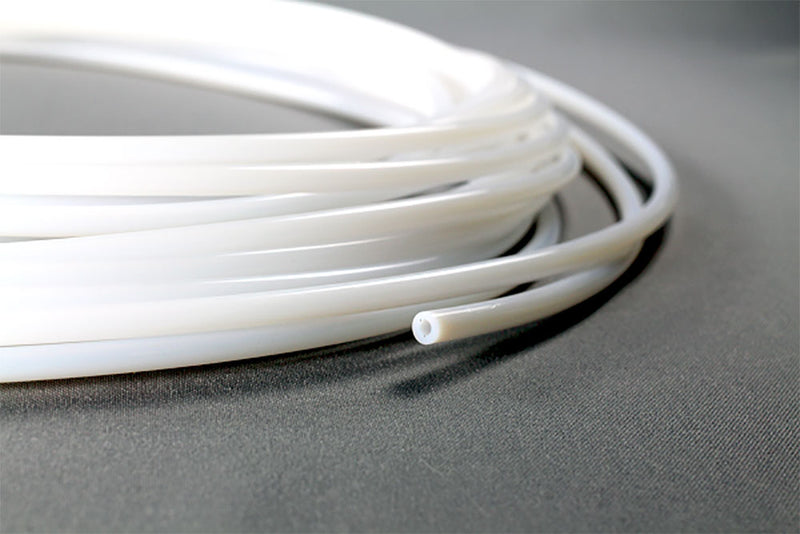

Versilon™ FBTFEF-0312-062-50 Saint Gobain 3/16" ID x 5/16" OD x .062" Wall 50' Package Length - PTFE-F High Temperature Flexible Tubing

FBTFEF-0312-062-50 Versilon™ by Saint Gobain | 3/16" ID x 5/16" OD x .062" Wall | PTFE-F High Temperature Flexible Tubing | 50' Package Length

Minimum Order Quantity: 40 Packages

Save $22.37 Save $22.37
$303.70
$303.70 - $303.70
$303.70
$281.33
$281.33 - $281.33
$281.33

Saint Gobain
Versilon™ PTFE-F High Temperature Flexible Tubing

Saint-Gobain's stringent materials quality control, state-of-the-art process control and food and beverage regulatory compliance expertise are why food and beverage dispensing equipment manufacturers use Versilon PTFE-F tubing. Versilon PTFE-F tubing provides excellent chemical resistance and a good diffusion-resistance.

Saint-Gobain's careful selection of resin type, particle size, temperature and pressure produces smooth and dimensionally stable tubing. Made out of polytetrafluoroethylene resin, PTFE-F tubing has the highest working temperature of any fluoropolymer tubing available today. In order to consistently ensure the quality of our products, we only use raw materials from leading manufacturers. We are able to produce tubes in various dimensions with different material properties according to the customer needs and the corresponding requirements.

No by the foot sales. This is a Packaged Length product.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FBTFEF-0312-062-50 Saint Gobain | 50 |
Brand: Versilon
Series: PTFE-F High Temperature Flexible Tubing
Hose Color(s): White/Off-White
Internal Diameter: 0.1875in
Outer Diameter: 0.3125in
Tubing Construction: Smooth Bore Non-Dissipating PTFE
Applicable Specs & Approvals: Applicable FDA Requirements, Regulation (EC) No 1935/2004, Regulation (EU) No 10/2011

SPECIFICATIONS

Application: Food and Beverage Dispensing SAE Rating: N/A
Other Ratings: N/A Tube: PTFE-F
Reinforcement: N/A Cover: N/A
Temperature Range: -450°F (-268°C) to 500°F (260°C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications Regulation (EU) No 10/2011, Regulation (EC) No 1935/2004, FDA
Literature: Versilon™ PTFE-F High Temperature Flexible Tubing (PDF)
Other Features:
  • Fully fluorinated fluoropolymer tubing.
  • Highest working temperature (up to +260°C) out of all fluoropolymer tubing.
  • WARNING: Versilon™ PTFE-F High Temperature Flexible Tubing is not intended as an implant material.
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min. Bend
Radius
(in.)		 Max. Working Pressure
at 73 deg. F
(PSI)		 Length
FBTFEF-0125-031-50 1/16" 1/8" 0.031" (1/32") 1/2" 197 PSI 50ft
FBTFEF-0187-031-50 1/8" 3/16" 0.031" (1/32") - - 50ft
FBTFEF-0250-031-50 3/16" 1/4" 0.031" (1/32") 1" 92 PSI 50ft
FBTFEF-0250-047-50 5/32" 1/4" 0.047" (3/64") 3/4" 146 PSI 50ft
FBTFEF-0250-062-50 1/8" 1/4" 0.062" (1/16") 1/2" 199 PSI 50ft
FBTFEF-0312-031-50 1/4" 5/16" 0.031" (1/32") 1-3/4" 73 PSI 50ft
FBTFEF-0312-062-50 3/16" 5/16" 0.062" (1/16") 1-1/2" 156 PSI 50ft
FBTFEF-0375-031-50 5/16" 3/8" 0.031" (1/32") 2-1/2" 66 PSI 50ft
FBTFEF-0375-062-50 1/4" 3/8" 0.062" (1/16") 1" 127 PSI 50ft
FBTFEF-0437-031-50 3/8" 7/16" 0.031" (1/32") - - 50ft
FBTFEF-0500-031-50 7/16" 1/2" 0.031" (1/32") 4" 52 PSI 50ft
FBTFEF-0500-062-50 3/8" 1/2" 0.062" (1/16") 2" 93 PSI 50ft
FBTFEF-0625-062-50 1/2" 5/8" 0.062" (1/16") 3" 73 PSI 50ft
FBTFEF-0750-062-50 5/8" 3/4" 0.062" (1/16") 6" 66 PSI 50ft

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
