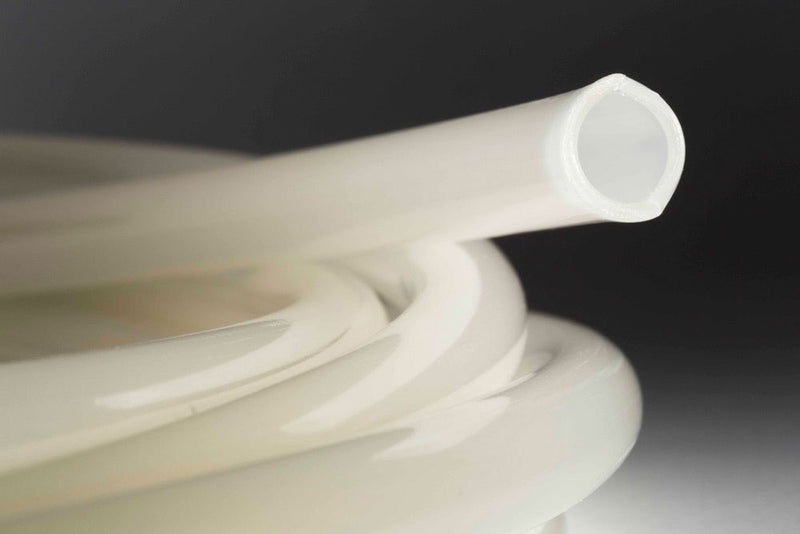

Versilon™ TSPVF8-0312-062.10 Saint Gobain 3/16" ID x 5/16" OD x .062" Wall 100' Package Length - Flexible PVDF Chemical Transfer Tubing

TSPVF8-0312-062.10 Versilon™ by Saint Gobain | 3/16" ID x 5/16" OD x .062" Wall | Flexible PVDF Chemical Transfer Tubing | 100' Package Length

Save $30.08 Save $30.08
$407.41
$407.41 - $407.41
$407.41
$377.33
$377.33 - $377.33
$377.33

Saint Gobain
Versilon™ PVDF Chemical Transfer Tubing

Produced from Kynar® Flex resin, a co-polymer material, Versilon PVDF chemical transfer tubing offers the stable characteristics of fluoropolymer tubing. In addition, it has abrasion resistance, mechanical strength and inherent high purity.

Versilon PVDF flexible tubing also offers chemical compatibility in higher pH solutions, increased impact strength and better clarity than standard PVDF. These features make Versilon PVDF tubing ideal for use in the semi-conductor industry, pulp and paper industry, and nuclear waste processing.

No by the foot sales. This is a Packaged Length product.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: TSPVF8-0312-062.10 Saint Gobain | 100 |
Brand: Versilon
Series: Versilon PVDF
Hose Color(s): White/Off-White
Internal Diameter: 0.1875in
Outer Diameter: 0.3125in
Tubing Construction: Polyvinylidene Fluoride
Applicable Specs & Approvals: Applicable FDA Requirements, FDA 21 CFR Part 177.2600

SPECIFICATIONS

Application: Chemical processing, Food processing, Nuclear waste processing, Photovoltaic, Pulp and paper, Semiconductor, Water transfer and purification SAE Rating: N/A
Other Ratings: N/A Tube: PVDF
Reinforcement: N/A Cover: N/A
Temperature Range: Maximum Recommended Operating Temp: 250°F (121°C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications Material compliant with 21 CFR Sec. 177.2600 (c)(4)(i), FDA
Literature: Versilon™ PTFE-F High Temperature Flexible Tubing (PDF)
Other Features:
  • High purity/low extractables
  • Abrasion resistance
  • Excellent chemical resistance
  • UV and radiation resistance
  • Mechanical strength and toughness
  • Low permeability
  • WARNING: Versilon™ PVDF Chemical Transfer Tubing is not intended as an implant material.
Part Number
50ft Lengths		 Part Number
100ft Lengths		 Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.)
TSPVF8-0125-031-50 TSPVF8-0125-031.10 1/16" 1/8" 0.031" (1/32")
TSPVF8-0187-031-50 TSPVF8-0187-031.10 1/8" 3/16" 0.031" (1/32")
TSPVF8-0250-040-50 TSPVF8-0250-040.10 8/47" (.170") 1/4" 0.040" (1/25")
TSPVF8-0250-062-50 TSPVF8-0250-062.10 1/8" 1/4" 0.062" (1/16")
TSPVF8-0312-062-50 TSPVF8-0312-062.10 3/16" 5/16" 0.062" (1/16")
TSPVF8-0375-031-50 TSPVF8-0375-031.10 5/16" 3/8" 0.031" (1/32")
TSPVF8-0375-062-50 TSPVF8-0375-062.10 1/4" 3/8" 0.062" (1/16")
TSPVF8-0437-062-50 TSPVF8-0437-062.10 5/16" 7/16" 0.062" (1/16")
TSPVF8-0500-062-50 TSPVF8-0500-062.10 3/8" 1/2" 0.062" (1/16")
TSPVF8-0625-062-50 TSPVF8-0625-062.10 1/2" 5/8" 0.062" (1/16")
TSPVF8-0750-062-50 TSPVF8-0750-062.10 5/8" 3/4" 0.062" (1/16")
TSPVF8-0875-062-50 TSPVF8-0875-062.10 3/4" 7/8" 0.062" (1/16")

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
