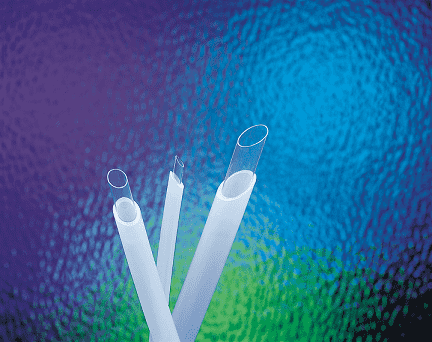

Versilon™ Duality TSFE4.125250PL1-50 (1/8" I.D. x 1/4" O.D. x .010 Wall) 50' Package Length - Fluoropolymer Lined Tubing

TSFE4.125250PL1-50 Versilon™ by Saint Gobain | 1/8" I.D. x 1/4" O.D. x .010 Wall | Duality Series | Fluoropolymer Lined Tubing | 50' Package Length

Save $20.50 Save $20.50
$102.50
$102.50 - $102.50
$102.50
$82.00
$82.00 - $82.00
$82.00

Saint Gobain - Versilon™ Duality Fluoropolymer Lined Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 EA

Specifications for Variant SKU: TSFE4.125250PL1-50 Saint Gobain | 50 |
Brand: Versilon
Series: Duality
Hose Color(s): White/Off-White
Internal Diameter: 0.125in
Outer Diameter: 0.25in
Tubing Construction: Fluoropolymer
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Liquor Dispensing Systems, Photo Development, Environmental Sampling Tubes, Bottle-Filling Equipment, Brewing and Distilling Processes, General Lab Use SAE Rating: N/A
Other Ratings: N/A Tube: FEP
Reinforcement: N/A Cover: LDPE
Temperature Range: 25 deg. F (-32 deg. C) - 180 deg. F (82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA Approved
Literature: Versilon™ Duality Fluoropolymer Lined Tubing (PDF)
Other Features:
  • Fluoropolymer lined construction
  • Purity assured
  • No plasticizers, No fillers, No VCM
  • Excellent alcohol and chemical resistance
  • Translucent, Cleans easily
  • No liquid absorption
  • No odor or taste contamination
  • No special fitting required
  • Jacket and liner made from FDA approved resins
  • Flexible, Lightweight, Excellent flex life
  • Excellent low-temperature toughness
Part Number (50ft Lengths) Part Number (100ft Lengths) Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Temperature Burst (PSI)*
TSFE4-125250PL1-50 TSFE4-125250PL1.10 1/8" 1/4" .010" 1" 900 PSI
TSFE4-187312PL2-50 TSFE4-187312PL2.10 3/16" 1/4" .010" 1-1/4" 350 PSI
TSFE4-250312PL4-50 TSFE4-250312PL4.10 1/4" 5/16" .010" 6" 300 PSI
TSFE4-250375PL5-50 TSFE4-250375PL5.10 1/4" 3/8" .010" 1-1/2" 600 PSI
TSFE4-375437PL7-50 TSFE4-375437PL7.10 3/8" 7/16" .012" 4" 200 PSI
TSFE4-375500PL8-50 TSFE4-375500PL8.10 3/8" 1/2" .012" 4" 350 PSI
TSFE4-500625PL9-50 TSFE4-500625PL9.10 1/2" 5/8" .015" 6" 250 PSI
* Each individual application should be evaluated to determine the degree of safety factor to be used with these values. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
