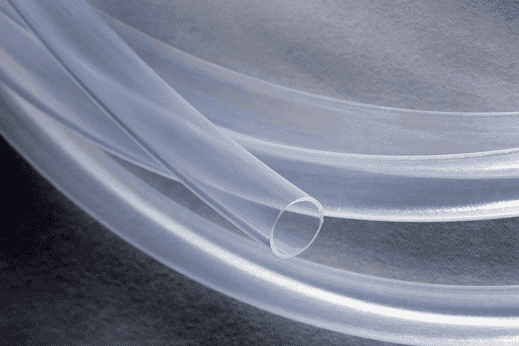

Versilon™ FEP TSFE14-0250-047.10 (5/32" I.D. x 1/4" OD x .047 Wall) 100' Package Length - FEP Tubing

TSFE14-0250-047.10 Versilon™ by Saint Gobain | 5/32" I.D. x 1/4" OD x .047 Wall | FEP Tubing | 100' Package Length

Save $18.97 Save $18.97
$256.30
$256.30 - $256.30
$256.30
$237.33
$237.33 - $237.33
$237.33

Saint Gobain - Versilon™ FEP Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: TSFE14-0250-047.10 Saint Gobain | 100 |
Brand: Versilon
Series: Versilon FEP
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.15625in
Outer Diameter: 0.25in
Tubing Construction: FEP
Applicable Specs & Approvals: Applicable FDA Requirements, USP - Class VI

SPECIFICATIONS

Application: Semiconductor Processing, Ultraviolet Radiation Sterilization Systems,
Analytical and Process Equipment in Biotechnology, Pharmaceutical,
and Environmental Fields, Cryogenic, General Laboratory Use, Chemical Processing		 SAE Rating: N/A
Other Ratings: N/A Tube: FEP
Reinforcement: N/A Cover: N/A
Temperature Range: -100 deg. F (-73 deg. C) - 400 deg. F (204 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA and USP Class VI
Literature: Versilon™ FEP Tubing (PDF)
Other Features:
  • Chemically inert
  • Ultra-pure and Non-toxic
  • Wide temperature capabilities
  • Non-corroding and non-oxidizing
  • Outstanding dielectric properties
  • Non-stick
  • Autoclavable
Part Number (50ft Lengths) Part Number (100ft Lengths) Inside Diameter (in. or mm) Outside Diameter (in. or mm) Wall Thickness (in. or mm) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 212 deg. F (PSI)* Max. Working Pressure at 400 deg. F (PSI)*
TSFE14-0125-031-50 TSFE14-0125-031.10 1/16" 1/8" .016" 1/2" 412 PSI 148 PSI N/A
TSFE14-0156-031-50 TSFE14-0156-031.10 3/32" 5/32" .031" N/A N/A N/A N/A
TSFE14-0250-062-50 TSFE14-0250-062.10 1/8" 1/4" .031" 1/2" 417 PSI 150 PSI N/A
TSFE14-0250-047-50 TSFE14-0250-047.10 5/32" 1/4" .047" 3/4" 289 PSI 104 PSI N/A
TSFE14-0250-031-50 - 3/16" 1/4" .031" 1" 177 PSI 64 PSI N/A
TSFE14-0312-062-50 TSFE14-0312-062.10 3/16" 5/16" .062" 1-1/2" 312 PSI 112 PSI N/A
TSFE14-0312-031-50 TSFE14-0312-031.10 1/4" 5/16" .031" 1-3/4" 140 PSI 50 PSI N/A
TSFE14-0375-062-50 TSFE14-0375-062.10 1/4" 3/8" .062" 1" 250 PSI 90 PSI N/A
TSFE14-0375-031-50 TSFE14-0375-031.10 5/16" 3/8" .031" 2-1/2" 113 PSI 41 PSI N/A
TSFE14-0500-062-50 TSFE14-0500-062.10 3/8" 1/2" .062" 2" 97 PSI 35 PSI N/A
TSFE14-0500-031-50 TSFE14-0500-031.10 7/16" 1/2" .031" 4" 83 PSI 30 PSI N/A
TSFE14-0625-062-50 - 1/2" 5/8" .062" 3" 139 PSI 50 PSI N/A
TSFE14-0750-062-50 TSFE14-0750-062.10 5/8" 3/4" .062" 6" 114 PSI 41 PSI N/A
TSFE14-0750-031-50 TSFE14-0750-031.10 11/16" 3/4" .031" 8" 54 PSI 19 PSI N/A

* Safety factor of 4 to 1 ratio burst pressure to working pressure. ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
