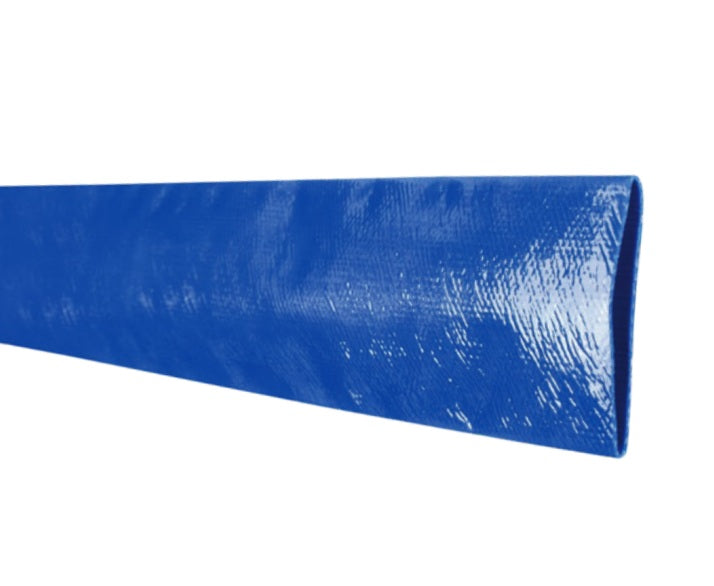

VF1600X100 Vinylflow® by Kuriyama | VF Series | Premium Drip Irrigation & Water Discharge Hose | PVC | 16" Size | 16.142" Hose ID | Blue | 100ft Length

Save $776.92

$6,042.52

$6,042.52 - $6,042.52

$6,042.52

$5,265.60

$5,265.60 - $5,265.60

$5,265.60

Kuriyama
VF Series | Premium Drip Irrigation & Water Discharge Hose

Designed for agriculture, construction, drip irrigation and industrial applications.

FREE SHIPPING DOMESTICALLY!

Package Quantity: 100 Foot

Specifications for Variant SKU: VF1600X100 Kuriyama \| 100 \|
Brand:	Vinylflow
Series:	VF Series
Hose Color(s):	Blue
Internal Diameter:	16.142in
Tubing Construction:	PVC
Cover Construction:	PVC
Compatible with the following Series:	AL-CLF Series \| AL-ELF Series

SPECIFICATIONS

Other Features:
Applications:	Agriculture Construction Drip irrigation Industrial
Construction:	Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation.
Service Temperature Range:	-10°F (-12°C) to +140°F (+60°C)
Durable PVC Material - Provides good abrasion, chemical and UV resistance. Drip Irrigation - Hose designed to be punched easily without tearing. Ideal for drip irrigation applications. Smooth PVC Tube - Provides low friction loss. PVC Cores - Hoses coiled around durable PVC cores providing for easy unwinding. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.

Part Number 100ft	Part Number 300ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)	Burst Pressure (PSI)
Part Number 100ft	Part Number 300ft	(in)	(mm)	(in)	(mm)	(in)	at 68°F	at 68°F
-	VF150X300	1-1/2"	38.1mm	1.614"	41.0mm	0.067"	80 PSI	240 PSI
-	VF200X300	2"	50.8mm	2.090"	53.1mm	0.067"	80 PSI	240 PSI
-	VF250X300	2-1/2"	63.5mm	2.598"	66.0mm	0.079"	80 PSI	240 PSI
-	VF300X300	3"	76.2mm	3.130"	79.5mm	0.079"	70 PSI	210 PSI
-	VF400X300	4"	101.6mm	4.134"	105.0mm	0.083"	70 PSI	210 PSI
-	VF500X300	5"	127.0mm	5.039"	128.0mm	0.087"	40 PSI	120 PSI
-	VF600X300	6"	152.4mm	6.181"	157.0mm	0.087"	50 PSI	150 PSI
VF800X100	VF800X300	8"	203.2mm	8.169"	207.5mm	0.106"	45 PSI	135 PSI
VF1000X100	-	10"	254.0mm	10.118"	257.0mm	0.118"	35 PSI	105 PSI
VF1200X100	-	12"	304.8mm	12.126"	308.0mm	0.118"	30 PSI	90 PSI
VF1400X100	-	14"	355.6mm	14.134"	359.0mm	0.118"	30 PSI	90 PSI
VF1600X100	-	16"	406.4mm	16.142"	410.0mm	0.118"	30 PSI	90 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
