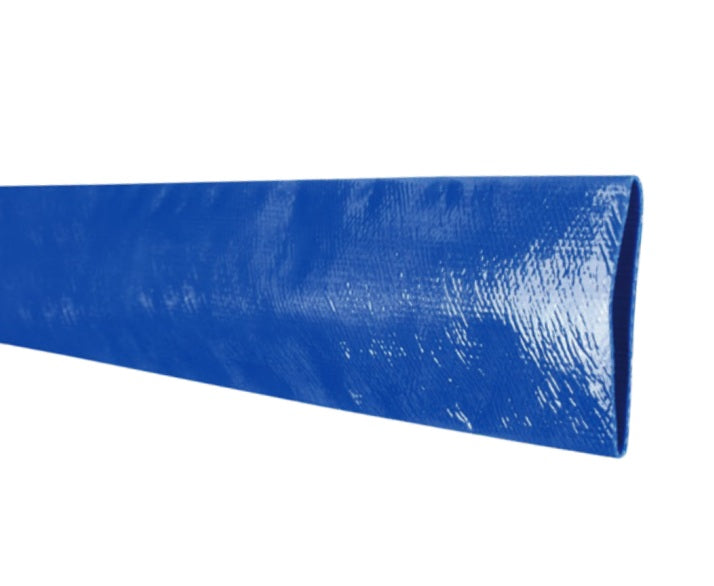

VFL600X300 Vinylflow® by Kuriyama | EZ-Lite™ VFL Series | General Purpose Water Discharge Layflat Hose | PVC | 6" Size | 6.102" Hose ID | Blue | 300ft Length

Save $564.22

$1,491.22

$1,491.22 - $1,491.22

$1,491.22

$927.00

$927.00 - $927.00

$927.00

Kuriyama
EZ-Lite™ VFL Series | General Purpose Water Discharge Layflat Hose

Designed for agriculture, construction, and equipment rental.

Package Quantity: 300 Foot

Specifications for Variant SKU: VFL600X300 Kuriyama \| 300 \|
Brand:	Vinylflow
Series:	EZ-Lite Series, VFL Series
Hose Color(s):	Blue
Internal Diameter:	6.102in
Tubing Construction:	PVC
Cover Construction:	PVC
Compatible with the following Series:	AL-CLF Series \| AL-ELF Series

SPECIFICATIONS

Other Features:
Applications:	Agriculture Construction Equipment Rental
Construction:	Spiral homogeneous PVC construction is ideal for construction and agriculture applications, and provides for minimal elongation.
Service Temperature Range:	-10°F (-12°C) to +140°F (+60°C)
Durable PVC Material - Provides good abrasion, chemical and UV resistance. "EZ" Design - An easy to handle, lightweight hose for general purpose applications. Smooth PVC Tube - Provides low friction loss. PVC Cores - Hoses coiled around durable PVC cores providing for easy unwinding. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.

Part Number 50ft	Part Number 300ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)	Burst Pressure (PSI)
Part Number 50ft	Part Number 300ft	(in)	(mm)	(in)	(mm)	(in)	at 68°F	at 68°F
-	VFL075X300	3/4"	19.1mm	0.760"	19.3mm	0.054"	100 PSI	300 PSI
-	VFL100X300	1"	25.4mm	1.024"	26.0mm	0.051"	85 PSI	255 PSI
-	VFL125X300	1-1/4"	31.8mm	1.299"	33.0mm	0.051"	85 PSI	255 PSI
-	VFL150X300	1-1/2"	38.1mm	1.614"	41.0mm	0.045"	65 PSI	195 PSI
VFL200X50	VFL200X300	2"	50.8mm	2.087"	53.0mm	0.048"	65 PSI	195 PSI
VFL300X50	VFL300X300	3"	76.2mm	3.071"	78.0mm	0.055"	60 PSI	180 PSI
-	VFL400X300	4"	101.6mm	4.094"	104.0mm	0.056"	60 PSI	180 PSI
-	VFL600X300	6"	152.4mm	6.102"	155.0mm	0.061"	40 PSI	120 PSI
-	VFL800X300	8"	203.2mm	8.189"	208.0mm	0.073"	40 PSI	120 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
