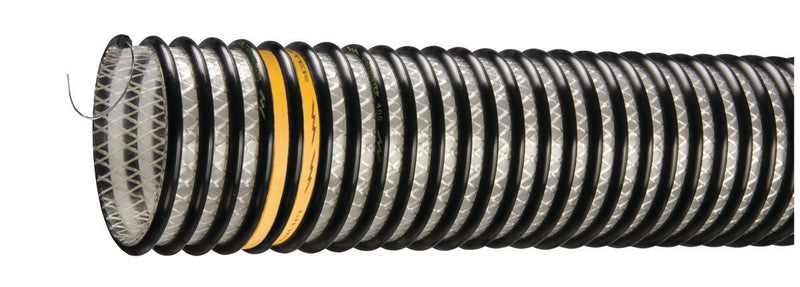

VLT-SD400X60 Tigerflex® Voltbuster™ by Kuriyama | VLT-SD™ Series | Heavy-Duty Food Grade Charge Reducing Fabric Reinforced Material Handling Hose | with Grounding Wire | Polyurethane | 4" ID | 4.84" OD | 60ft Length

Save $729.74 Save $729.74
$3,198.62
$3,198.62 - $3,198.62
$3,198.62
$2,468.88
$2,468.88 - $2,468.88
$2,468.88
p>Kuriyama of America Inc.
Tigerflex® | Voltbuster™ VLT-SD™ Series | Heavy-Duty Food Grade Charge Reducing Fabric Reinforced Material Handling Hose with Grounding Wire | Polyurethane

Built for heavy-duty bulk transfer.

Ideal for truck and railcar unloading, abrasive food-grade material handling, milling scrap recovery, and suction and discharge use in plastic processing and pneumatic conveying systems.

Made in the USA.


Package Quantity: 60 Foot

Specifications for Variant SKU: VLT-SD400X60 Kuriyama | 60 |
Brand: Tigerflex, Voltbuster
Series: VLT-SD Series
Hose Color(s): Black & Clear/Semi-Clear & Orange
Internal Diameter: 4in
Outer Diameter: 4.84in
Tubing Construction: Static Dissipating Polyurethane
Applicable Specs & Approvals: BSE/TSE, FDA 21 CFR Part 177.2600, FDA 21 CFR Part 175.105, RoHS Compliant
Special Properties: Conductive Tube, Ground Wire in Hose, Outer Helix Protection
Static Dissipating Food Grade Hose

Tigerflex™ Voltbuster™ VLT-SD Series

Heavy-duty abrasive food grade suction and discharge hose with a charge reducing polyurethane tube, polyester fabric reinforcement, rigid helix and embedded grounding wire (patent pending) — engineered for superior static protection in bulk unloading and pneumatic conveying.

⚡

Superior Static Protection

Charge decay time constant of < 1 second when properly grounded

✓

Food Grade Materials

Tube complies with applicable FDA requirements

♦

Abrasion Resistant

Extra thick double-ply polyurethane tube

❄

Cold-Flex Materials

Remains flexible in sub-zero temperatures

◎

See-the-Flow

Transparent construction for visual confirmation of flow

1

What is this product used for?
  • Bulk truck and railcar unloading
  • Food grade material handling — heavy duty abrasive
  • Milling machine scrap recovery
  • Plastic processing equipment
  • Pneumatic conveying equipment
  • Suction and discharge
2

What are the key specifications?
Tube

Charge reducing polyurethane

Reinforcement

Polyester fabric reinforcement, rigid helix and grounding wire (patent pending)

Cover

—

Service Temperature Range

-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Specifications

BSE/TSE (02) · FDA (05) · Phthalate Free (10) · RoHS (11)

3

What are the main product features?
  • Superior Static Protection! — A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing.
  • Food Grade Materials — Hose tube complies with FDA (05) requirements. Grounding wire embedded in external helix to prevent material contamination.
  • Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube — Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Fabric Reinforcement — Designed with high tensile strength, food grade FDA (06), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix — Rigid helix design protects hose from wear; allows hose to slide easily over rough surfaces. Easy to handle.
  • Made in the USA
4

Which sizes are available?
Part
Number		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F
2" ID
VLT-SD200X50 2" 51.1mm 2.67" 67.0mm 75 PSI 40 PSI Full 28 in Hg 9" 50ft 0.77 lbs
VLT-SD200X100 2" 51.1mm 2.67" 67.0mm 75 PSI 40 PSI Full 28 in Hg 9" 100ft 0.77 lbs
3" ID
VLT-SD300X20 3" 77.0mm 3.78" 96.0mm 70 PSI 35 PSI Full 28 in Hg 12" 20ft 1.22 lbs
VLT-SD300X100 3" 77.0mm 3.78" 96.0mm 70 PSI 35 PSI Full 28 in Hg 12" 100ft 1.22 lbs
4" ID
2020-400X20 4" 102.2mm 4.84" 123.0mm 65 PSI 30 PSI Full 28 in Hg 13" 20ft 1.85 lbs
2020-400X50 4" 102.2mm 4.84" 123.0mm 65 PSI 30 PSI Full 28 in Hg 13" 50ft 1.85 lbs
2020-400X100 4" 102.2mm 4.84" 123.0mm 65 PSI 30 PSI Full 28 in Hg 13" 100ft 1.85 lbs
5" ID
VLT-SD500X60 5" 128.0mm 5.79" 152.0mm 45 PSI 22 PSI 28 in Hg 25 in Hg 14" 60ft 2.43 lbs
6" ID
VLT-SD600X60 6" 153.4mm 6.93" 177.4mm 40 PSI 22 PSI 28 in Hg 25 in Hg 17" 60ft 3.05 lbs
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free and RoHS compliance.

i
Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

How is this product sold?

Sold by the coil in 20 ft, 50 ft, 60 ft and 100 ft lengths, depending on hose size. See the size chart above for available part numbers.


⚠ CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.
