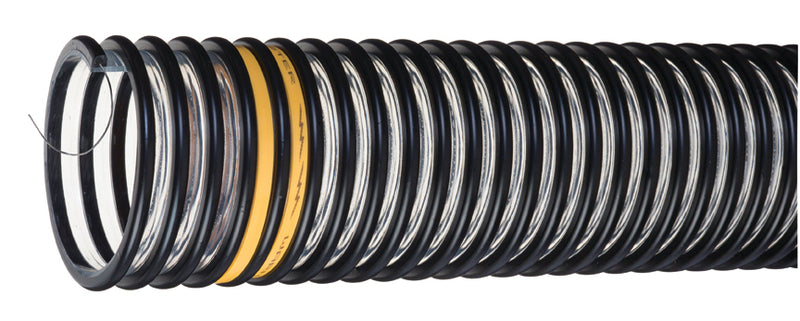

VOLT600X60 Tigerflex® Voltbuster™ by Kuriyama | VOLT™ Series | Heavy-Duty Charge Reducing Food Grade Material Handling Hose | with Grounding Wire | Polyurethane | 6" ID | 6.81" OD | 60ft Length

$0.00 - $0.00
$0.00
$3,924.00
$3,924.00 - $3,924.00
$3,924.00
p>Kuriyama of America Inc.
Tigerflex® | Voltbuster™ VOLT™ Series | Heavy-Duty Charge Reducing Food Grade Material Handling Hose with Grounding Wire | Polyurethane

Designed for heavy-duty bulk handling.

Ideal for truck and railcar unloading, fly ash collection, milling scrap recovery, and abrasive food-grade or pharmaceutical material transfer in plastic processing and pneumatic conveying systems.

Made in the USA.


Package Quantity: 60 Foot

Specifications for Variant SKU: VOLT600X60 Kuriyama | 60 |
Brand: Tigerflex, Voltbuster
Series: VOLT Series
Hose Color(s): Black & Clear/Semi-Clear & Orange
Internal Diameter: 6in
Outer Diameter: 6.81in
Tubing Construction: Static Dissipating Polyurethane
Applicable Specs & Approvals: BSE/TSE, FDA 21 CFR Part 177.2600, FDA 21 CFR Part 175.105, FDA 21 CFR Part 177.2800 (5)(i), FDA 21 CFR Part 170.39, RoHS Compliant
Special Properties: Conductive Tube, Ground Wire in Hose, Outer Helix Protection
Static Dissipating Food Grade Hose

Tigerflex™ Voltbuster™ Series

Heavy-duty abrasive food grade material handling hose with a charge reducing polyurethane tube, PVC cover, rigid helix and embedded grounding wire — engineered for superior static protection in bulk unloading and pneumatic conveying.

⚡

Superior Static Protection

Charge decay time constant of < 1 second when properly grounded

✓

Food Grade Materials

Tube complies with applicable FDA requirements

♦

Abrasion Resistant

Extra thick double-ply polyurethane tube

❄

Cold-Flex Materials

Remains flexible in sub-zero temperatures

◎

See-the-Flow

Transparent construction for visual confirmation of flow

1

What is this product used for?
  • Bulk truck and railcar unloading
  • Fly ash collection
  • Food grade material handling — heavy duty abrasive
  • Milling machine scrap recovery
  • Pharmaceutical product transfer
  • Plastic processing equipment
  • Pneumatic conveying equipment
2

What are the key specifications?
Tube

Charge reducing polyurethane

Reinforcement

Rigid helix and grounding wire

Cover

PVC

Service Temperature Range

-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Specifications

BSE/TSE (02) · FDA (05) · FDA (06) · Phthalate Free (10) · RoHS (11)

3

What are the main product features?
  • Superior Static Protection! — A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing.
  • Food Grade Materials — Hose tube complies with FDA (05) requirements. Grounding wire embedded in external helix to prevent material contamination.
  • Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube — Provides for longer hose life & lower operating costs versus rubber or PVC hoses.
  • Fabric Reinforcement — Designed with high tensile strength, food grade FDA (06), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix — Rigid helix design protects hose from wear; allows hose to slide easily over rough surfaces. Easy to handle.
  • Made in the USA
4

Which sizes are available?
Part
Number		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F
1-1/2" ID
VOLT150X60 1-1/2" 38.1mm 1.87" 47.5mm 40 PSI 20 PSI Full 28 in Hg 2" 60ft 0.31 lbs
VOLT150X100 1-1/2" 38.1mm 1.87" 47.5mm 40 PSI 20 PSI Full 28 in Hg 2" 100ft 0.31 lbs
2" ID
VOLT200X60 2" 51.1mm 2.52" 63.9mm 40 PSI 20 PSI Full 28 in Hg 6" 60ft 0.61 lbs
VOLT200X100 2" 51.1mm 2.52" 63.9mm 40 PSI 20 PSI Full 28 in Hg 6" 100ft 0.61 lbs
2-1/2" ID
VOLT250X100 2-1/2" 63.5mm 2.96" 75.2mm 40 PSI 20 PSI Full 28 in Hg 7" 100ft 0.76 lbs
3" ID
VOLT300X20 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28 in Hg 9" 20ft 0.91 lbs
VOLT300X60 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28 in Hg 9" 60ft 0.91 lbs
VOLT300X100 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28 in Hg 9" 100ft 0.91 lbs
4" ID
VOLT400X20 4" 101.6mm 4.69" 121.0mm 35 PSI 17 PSI 28 in Hg 25 in Hg 12" 20ft 1.70 lbs
VOLT400X60 4" 101.6mm 4.69" 121.0mm 35 PSI 17 PSI 28 in Hg 25 in Hg 12" 60ft 1.70 lbs
VOLT400X100 4" 101.6mm 4.69" 121.0mm 35 PSI 17 PSI 28 in Hg 25 in Hg 12" 100ft 1.70 lbs
5" ID
VOLT500X60 5" 127.0mm 5.75" 146.8mm 35 PSI 17 PSI 28 in Hg 25 in Hg 14" 60ft 2.13 lbs
6" ID
VOLT600X60 6" 153.4mm 6.81" 173.2mm 30 PSI 15 PSI 25 in Hg 20 in Hg 16" 60ft 2.53 lbs
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free and RoHS compliance.

i
Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

How is this product sold?

Sold by the coil in 20 ft, 60 ft and 100 ft lengths, depending on hose size. See the size chart above for available part numbers.


⚠ CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
