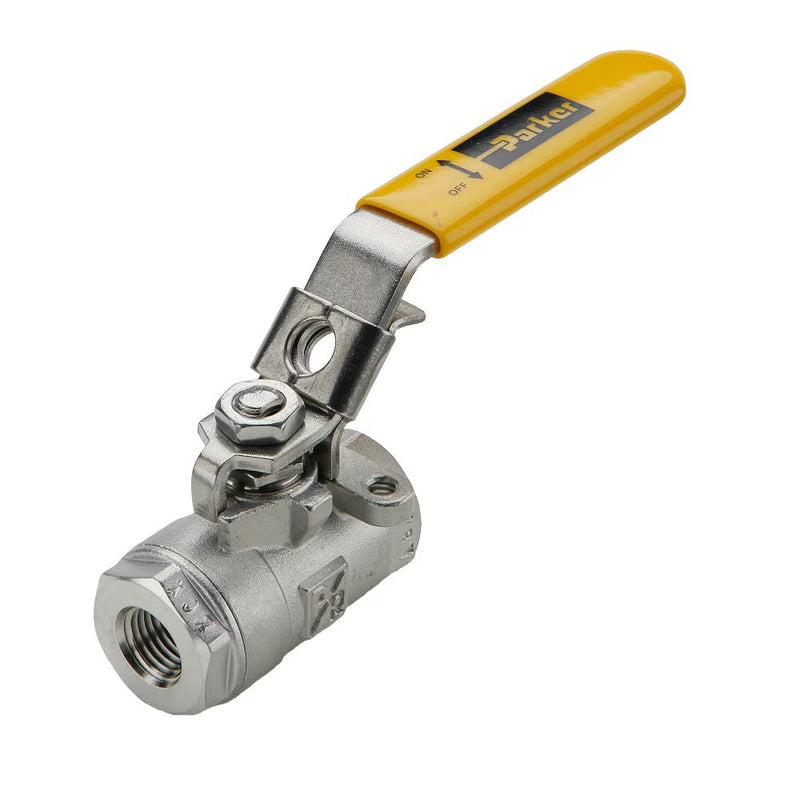

VP502SS-16 by Parker | Ball Valve | 1" Female NPT Thread | 1-5/8" Hex (B/C) | 6.77" Length | Straight | Stainless Steel

VP502SS-16 by Parker | Ball Valve | 1" Female NPT Thread | 1-5/8" Hex (B/C) | 6.77" Length | Straight | Stainless Steel

Save $28.26 Save $28.26
$208.99
$208.99 - $208.99
$208.99
$180.73
$180.73 - $180.73
$180.73

by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Locking Handle, Female Pipe Ends, Panel Mount VP502SS
Specifications for Variant SKU: VP502SS-16 Parker
Series: VP502SS Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): PTFE
Special Properties: Silicone Free, Valved
Product Features:
  • CF-8M Stainless Steel body
  • Stainless Steel ball
  • PTFE Seats/Seals
  • Stainless Steel handle
  • Silicone Free
Style:
  • V-Valve
  • VP-Valve, Padlocking
Type:
  • 502-Panel Mount Female/Female NPT Ports
Material:
  • SS – Stainless Steel
Options:
  • 20-Short Handle
  • 21-Oval Handle
  • 35-Welded Retainer Nut
Specification:
Temperature Range: 0° to +400° F (-17.7° to +204.4° C)
Pressure Range:
  • 1/4” – 1”: 2000 PSI (137.8 bar)
  • 1 1/4” – 2”: 1500 PSI (103.4 bar)
  • Vacuum service 28 inches Hg
Approvals: Meets material requirements of NACE MR-01-75
Part Number Pipe Thread (NPT) Hex (B / C) F G H Thread (I) L M N Flow Diameter (D) Hole Diameter
VP502SS-4 1/4" 15/16" .500" 1.125" 4.00" 10-24 UNC 5.03" 2.07" 2.52" .380" 1.125"
VP502SS-6 3/8" 15/16" .500" 1.125" 4.00" 10-24 UNC 5.03" 2.07" 2.52" .380" 1.125"
VP502SS-8 1/2" 1-1/16" .500" 1.125" 4.00" 10-24 UNC 5.13" 2.27" 2.65" .500 1.125"
VP502SS-12 3/4" 1-3/16" .875" 1.375" 5.00" 10-24 UNC 6.67" 3.35" 3.46" .790" 1.500"
VP502SS-16 1" 1-5/8" .875" 1.375" 5.00" 10-24 UNC 6.77" 3.54" 3.74" 1.000" 1.500"
VP502SS-20 1-1/4" 2" 1.000" 1.500" 7.00" 1/4-20 UNC 9.00" 4.00" 4.55" 1.250" 2.000"
VP502SS-24 1-1/2" 2-3/8" 1.000" 1.500" 7.00" 1/4-20 UNC 7.19" 4.38" 5.42" 1.500" 2.000"
VP502SS-32 2" 3" 1.000" 1.500" 7.00" 1/4-20 UNC 9.75" 5.50" 5.68" 2.000" 2.000"
