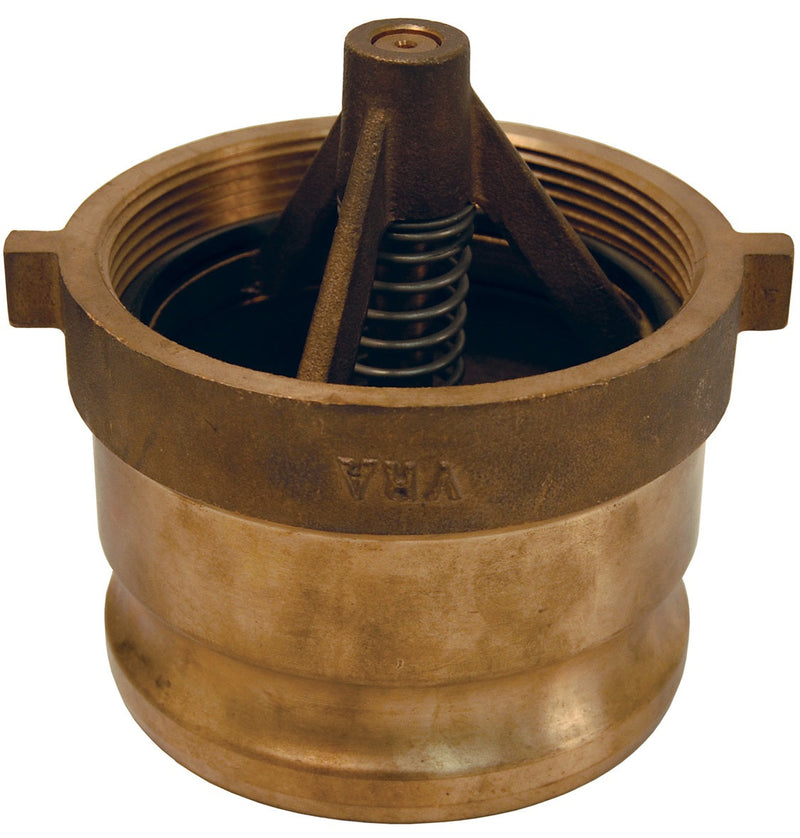

VR4086 by Dixon Valve | Vapor Recovery Tank Adapter | 4" Adapter Size x 4" Female NPT | Bronze

VR4086 by Dixon Valve | Vapor Recovery Tank Adapter | 4" Adapter Size x 4" Female NPT | Bronze

Save $38.77 Save $38.77
$377.37
$377.37 - $377.37
$377.37
$338.60
$338.60 - $338.60
$338.60

Dixon Valve
Tank Truck | Vapor Recovery Tank Adapter

For use with dual point vapor elbows (VR6200 series)

When fuel is delivered to the fuel station, vapor recovery elbows are connected to the in-ground tank adapters. The vapor adapter is threaded to the in-ground tank vapor outlet connection.
Specifications for Variant SKU: VR4086 Dixon
Brand: Bayco
Shape (Orientation): Straight
Material(s): Bronze
Features:
  • With outlet poppet valves to prevent fuel vapors from escaping. Poppet opens when vapor elbow is connected..
  • Low profile design.
  • Poppeted vapor collar at station vapor outlet.
Use:
  • Manufactured with 4" pipe threads to connect to in-ground fuel tanks and than provide an interface to connect the vapor recovery elbows.
  • Can be used as vapor valve on a fuel tanker (does not have mount for air interlock).
Part Number Adapter Size Female Thread Height Material
VR4086 4" 4" NPT 3-5/8" Bronze
VR4086-BY 4" 4" NPT 3-5/8" Zinc / Aluminum Alloy
