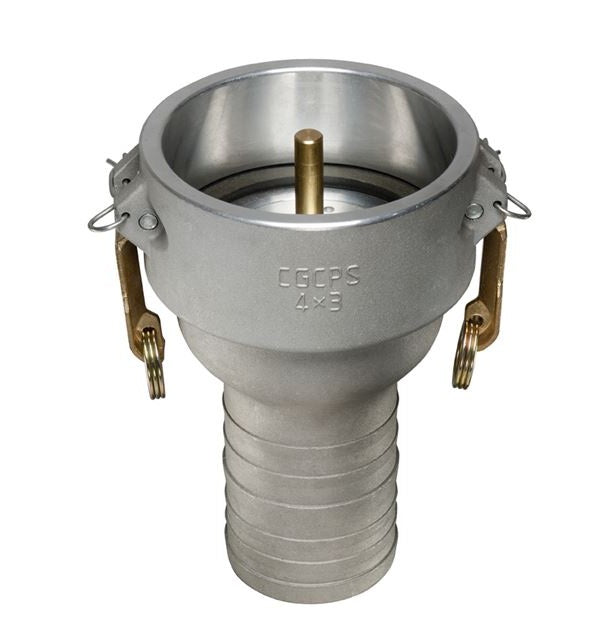

VRP-P4030 by Kuriyama | VRP-P Series | Part C | Vapor Recovery Cam & Groove Fitting | with Poppet | 4" Coupler x 3" Hose Barb | Aluminum

Save $27.20

$176.47

$176.47 - $176.47

$176.47

$149.27

$149.27 - $149.27

$149.27

Kuriyama of America Inc.
Vapor Recovery Cam & Groove (Camlock) Fitting with Poppet | VRP-P Series | Part C | Coupler x Hose Barb | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: VRP-P4030 Kuriyama
Series:	VRP-P Series
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	4in Female Cam & Groove, 3in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made for use in petroleum markets with bottom loading applications.
Each coupling comes with a probe for connecting with male vapor coupling.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles, which results in less wear on connecting parts.

What are the Materials?

ASTM aluminum alloy.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Supplied with brass probe.
Buna-N gasket included.

Part Number	Coupler Size (in)	Shank Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
VRP-P4030	4"	3"	150 PSI	B26 Grade 713	4.01 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
