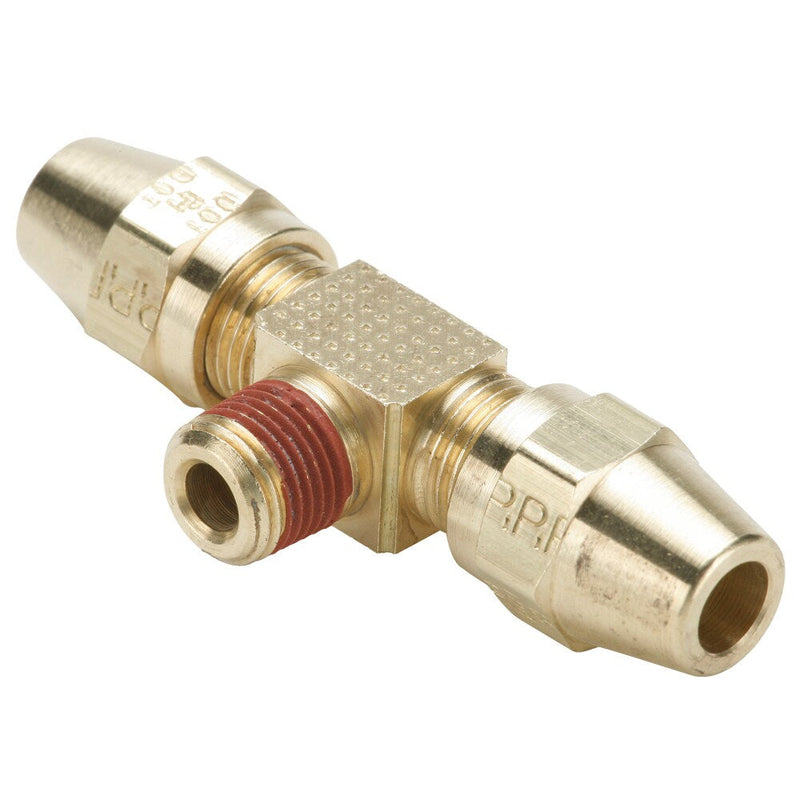

VS272AB-4-2 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | Tee | Brass | Pack of 10

VS272AB-4-2 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | Tee | Brass | Pack of 10

Save $73.47 Save $73.47
$183.68
$183.68 - $183.68
$183.68
$110.21
$110.21 - $110.21
$110.21

by Parker Hannifin
Air Brake – AB Fittings:Male Branch Tee VS272AB

Package Quantity: 10 Units

Specifications for Variant SKU: VS272AB-4-2 Parker | 10 |
Series: VS272AB Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade, Reuseable
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
VS272AB-4-2 1/4" 1/8" 7/16"-24 1.20" .62" .66" .189"
VS272AB-4-4 1/4" 1/4" 7/16"-24 1.26" .68" .87" .189"
VS272AB-6-2 3/8" 1/8" 17/32"-24 1.61" .72" .75" .189"
VS272AB-6-4 3/8" 1/4" 17/32"-24 1.68" .79" .92" .314"
VS272AB-6-6 3/2" 3/8" 17/32"-24 1.73" .84" .91" .314"
VS272AB-8-6 1/2" 3/8" 11/16"-20 1.89" .93" .99" .408"
VS272AB-8-8 1/2" 1/2" 11/16"-20 1.99" 1.03" 1.18" .408"
VS272AB-10-8 5/8" 1/2" 13/16"-18 2.18" 1.09" 1.24" .533"
